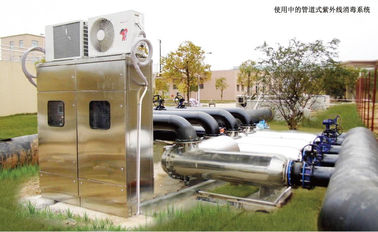

125mm UV Sterilization System , PLC Control UV Light Disinfection System

Product Details:
Place of Origin: CHINA
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GB-A(B)-14-UV
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: wooden case
Delivery Time: 40-45 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 set/month

Detail Information

Number Of Lamps: 14 Inlet And Outlet Diameter: 125mm
Lamp Brand: Lightsource System Type: Pipeline
Running Method: PLC Control Material: SS304 Or SS316
High Light:

ultraviolet sterilization systems


ultraviolet water purification system

Product Description

ISO9001 Ultraviolet Disinfection Water Treatment Machine with PLC Control



Product description


The UV sterilizer adopts special odorless high-intensity ultraviolet germicidal lamp. The cylinder wall is the micro-carbon austenite stainless steel with special treatment, making the pre-treated water be irradiated by enough ultraviolet whose wavelength is 253.7nm.So the sterilizing effect is good and efficient. The product will not change the other physical and chemical character of water. So it’s an essential equipment for producing pure water in areas such as electron, medication, food, chemical engineering, beverage cosmetic and so on.



UV has many advantages over other disinfection processes:


• UV is effective and quick. No need for holding tanks and reaction times. No need for storing chemicals.


• UV does not alter the taste of water, which makes it ideal for use in bottling plants and food processing applications.


• UV is safe. NO need to add or handle hazardous chemicals or risk polluting the environment.


• UV is compatible with all other water treatment processes. No need for de-chlorination if using RO systems. In fact, UV enhances the use of other water treatment by keeping them free from germs.


• UV is economical. Almost always, the cost of UV disinfection units is much less than the cost of chemical treatment systems. The cost of service and maintenance of UV units is very low. The electrical running cost of an UV unit in a house is about that of a regular light bulb.


• UV is more effective against viruses than chlorine.


• Easy installation. UV units are very easy to install and require very little space.





1. Water reuse disinfection


2. Disinfection of secondary water supply


3. Municipal sewage disinfection


4. Aquaculture processing water disinfection


5. Shellfish purification disinfection


6. Aquarium water disinfection


7. Running water, purified water and mineral water disinfection


8. Food and beverage industry disinfection


9. Entertainment facility water disinfection


10. Family of small drinking water disinfection


11. Neighborhood, office, hotel drinking water disinfection


12. Pharmaceuticals and cosmetic industry sterile water disinfection


13. Landscape of municipal water disinfection


14. Pharmaceuticals water disinfection



Small size Lamp 39W / root Lamp 75W / root
Model Number of lamps Inlet and outlet diameter (mm) Total power(W) Water flow rate (m3 / h) Total power(W) Water flow rate (m3 / h)
GB-A(B)-2-UV 2 DN50 78 5 150 10
GB-A(B)-4-UV 4 DN80 156 10 300 20
GB-A(B)-6-UV 6 DN80 234 15 450 30
GB-A(B)-8-UV 8 DN100 312 20 600 40
GB-A(B)-10-UV 10 DN100 390 25 750 50
GB-A(B)-12-UV 12 DN125 468 30 900 60
GB-A(B)-14-UV 14 DN125 546 35 1050 70


125mm UV Sterilization System , PLC Control UV Light Disinfection System 0
