Open Channel UV Sterilization System , 20000m3 / Day UV Water Disinfection System

Product Details:
Place of Origin: CHINA
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GB-20000-UV
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: wooden case
Delivery Time: 40-45 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 set/month

Detail Information

Material: SS304 / SS316 Generator Flow Rate: 20000 M3 / D
Function: Sterilize Power Supply: 220V/380V, 50Hz
System Type: Open Channel Disinfection Rate: Over 99.99%
High Light:

ultraviolet sterilization systems

,

ultraviolet water purification system

Product Description

Open Channel UV Sterilization System for Sewage Water Treatment





What is Ultraviolet (UV) Light?



Ultraviolet (UV) light is a form of light that is invisible to the human eye. It occupies the portion of the electromagnetic spectrum between X-rays and visible light. The sun emits ultraviolet light; however, much of it is absorbed by the earth’s ozone layer.

A unique characteristic of UV light is that a specific range of its wavelengths, those between 200 and 300 nanometers (billionths of a meter), are categorized as germicidal – meaning they are capable of inactivating microorganisms, such as bacteria, viruses and protozoa. This capability has allowed widespread adoption of UV light as an environmentally friendly, chemical-free, and highly effective way to disinfect and safeguard water against harmful microorganisms.





Comparison between Quartz lamp and boric lamp:



Quartz Lamp:

Made by natural quartz with better penetration to UV ray and provide better germicidal result with longer effective usage life but cost much more than boric lamp. Melting point above 1800°C and hardness higher. Be able to be used in water without chemical substances and side effect.



Boric Lamp:

Made by boric. Penetration rate and effective usage life are about 1/2 compare to quartz though cost is much more less than quartz. Melting point below 1400°C and hardness lower. Boric contains chemical substances and could release toxic substances in water which should not be suggested to be used in drinking water e. production line, carbonated beverage production line etc. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient.





Application



Food and Beverage

UV disinfection system can help to achieve quality of water as per specifications laid down by the FDA (Food and Drug Administration).



Bio- Pharmaceutical

Water used in Pharmaceutical and healthcare products and for CIP (Cleaning in Place) must be free of chemicals like chlorine, ozone, and pathogens. Most pharmaceutical companies depend on UV systems for water disinfection.



Cosmetics

Water that is free of microorganisms and toxins ensure quality and enhance the shelf life of cosmetics. UV Sterilization is the preferred choice for the cosmetic industry across the globe.



Centralized Drinking Water

A UV drinking water disinfection system is an easy, affordable solution to ensure pure water in each and every tap of your home or office.



Waste Water Disinfection and Reuse

To combat the problems of water scarcity and rising cost of fresh water, UV Disinfection can help by treating the waste water in the tertiary stage. UV systems that are specially designed for wastewater can thus disinfect wastewater so that the water can be reused for secondary purposes such as flushing and gardening.



Swimming Pools

Traditionally, chlorine has been in use to ensure clean water in swimming pools. However, it is increasingly being known that with chemical disinfection, chemical reacts with many other organic matters to form hundreds of new chemicals which are harmful. While UV is recognized as safer and more cost effective way to disinfect swimming pools.





Key Parameters



Note: the following table is only for your reference. Other different product models not included can be customized on demands.



Model GB-10000-UV GB-20000-UV GB-30000-UV GB-40000-UV
Flow rate 10000 m3 / d 20000 m3 / d 30000 m3 / d 40000 m3 / d
Number of lamps Level A standard 24 - 32 40 - 48 64 - 72 88 - 96
Level B standard 16 - 24 32 - 40 48 - 56 64 - 72
Cross section width Level A standard 0.3 – 0.4 0.5 – 0.6 0.8 – 0.9 1.1 – 1.2
Level B standard 0.2 – 0.3 0.4 – 0.5 0.6 – 0.7 0.8 – 0.9
Water deep 0.8 0.8 0.8 0.8
Material SS316L for underwater frame,SS304 or aluminum alloy for other components
Protection grade IP68 grade for underwater,IP65 Grade for above water
Automatic rinsing system Manual, Automatic machine cleaning is optional.
Control System Temperature monitor, PLC intensity monitor, water level control system.

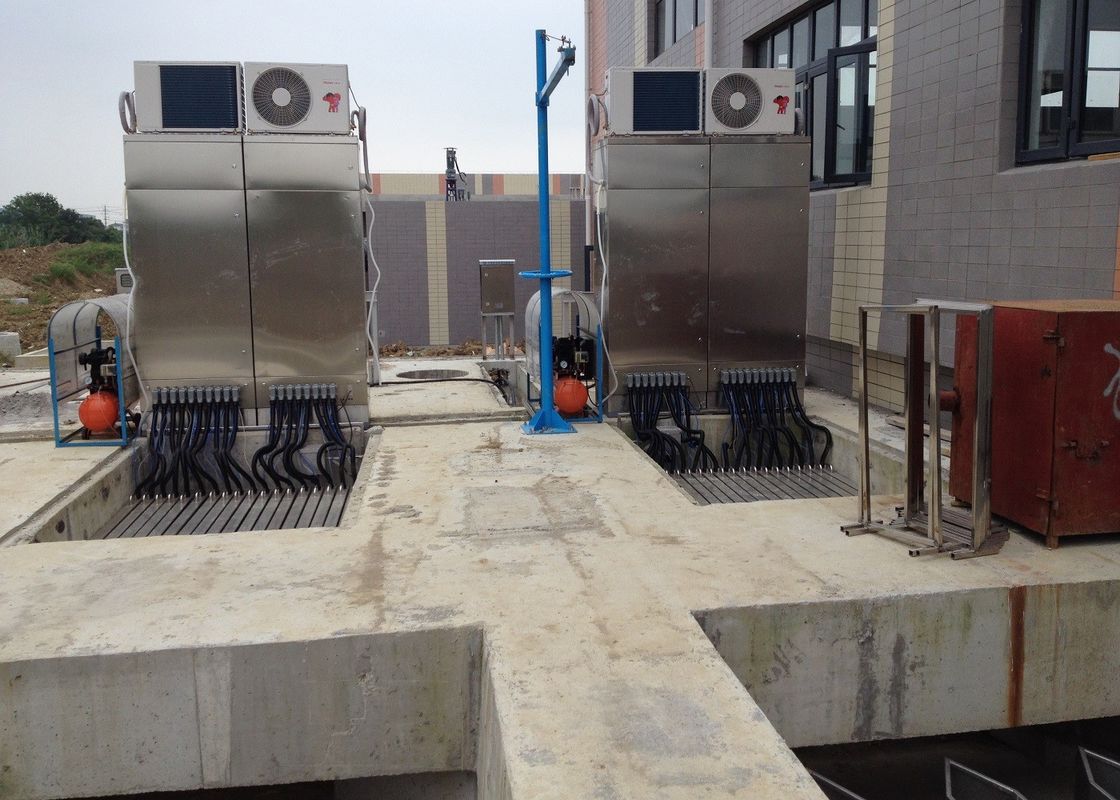

Open Channel UV Sterilization System , 20000m3 / Day UV Water Disinfection System 0
