Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Geemblue |
| Certification: | ISO9001 CE |
| Model Number: | XFDM02B |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 30-60 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SET/MONTH |
|
Detail Information |
|||
| Model: | XFDM02B | Anode Material: | BDD |
|---|---|---|---|
| Cathode Material: | Titanium | Treatment Capacity: | By Water Quality |
| Number Of Modules: | 2-slot 4-module | Area Of Anode Strip: | 1.75m2 |
| High Light: | Copper Nitrate Waste Solution Recovery Equipment,1.75m2 Anode Strip Copper Recovery Equipment |
||
Product Description

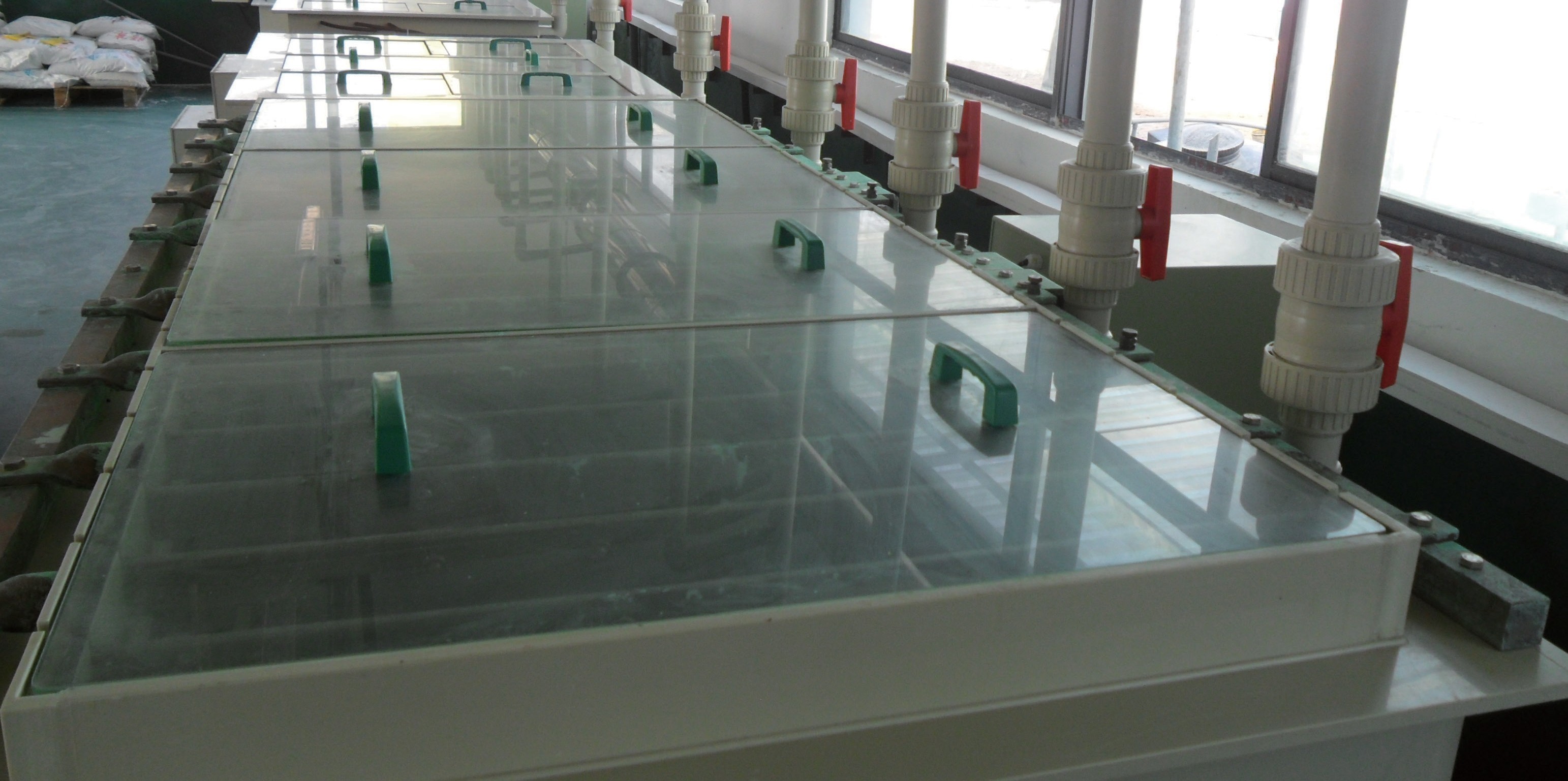

Copper Recovery Equipment For Copper Nitrate Waste Solution
The copper nitrate waster solution is firstly added with liquid alkali to adjust the pH value to 2 ~ 3, so as to weaken the acidity and oxidability of the solution. The solution is directly electrolyzed using a copper nitrate electrolysis equipment to reduce the copper ion concentration to below 0.5 g/L, resulting in obtaining plate-shaped electrolytic copper. The waste solution obtained after electrolysis contains low concentration of nitric acid and can be discharged directly to the wastewater station for alkaline neutralization treatment.
Specifications:
| Equipment model | XFDM01 | XFDM02 | XFDM04 |
| Equipment dimension (L×W×H, mm) | 1094 x 794 x 1844 | 1392 x 1247 x 2048 | 1900 x 1500 x 1850 |
| Operating weight of equipment(kg) | 972 | 1947 | 650 |
| Number of modules | 1-slot 2-module | 2-slot 4-module | 4-slot 8-module |
| Anode material | BDD | ||
| Cathode material | Ti | ||
| Area of anode strip(㎡) | 0.88 | 1.75 | 3.5 |
| Treatment capacity(m³/h) | By water quality | ||
| Single-batch processing time(h) | By water quality | ||
| Design circulating flow(m³/h) | 10 | 20 | 30 |
| Head loss at design circulating flow(KPa) | 20 | 20 | 40 |
| Installed power(Kw) | 10 | 20 | 40 |
| Service power(Kw) | ≤7 | ≤12 | ≤20 |
| Current density(mA/c㎡) | ≤70(≤301 A) | ≤70(≤602 A) | ≤70(≤1204 A) |
| Maximum heating power(Kw) | 2.79 | 5.6 | 14 |
| Input voltage | AC 380 V/50 Hz | AC 380 V/50 Hz | AC 380 V/50 Hz |
| Power output | DC 500 A/20 V | DC 1000 A/20 V | DC 2000 A/20 V |
| Operating ambient temperature | 0 ℃ ~ 40 ℃ | ||
| Relative humidity | ≤90% | ||
| Installation method | Indoor | ||
| Circulating water pump | None | ||
| Pressure protection | Optional | ||
| Temperature protection | Optional | ||
| Inlet diameter | DN50 flange | DN50 flange | DN80 flange |
| Outlet diameter | DN50 flange | DN50 flange | DN80 flange |
