Copper Recovery Equipment for Copper Sulfate Waste Solution

Product Details:
Place of Origin: CHINA
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: XFDM02B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: NEGOTIATION
Packaging Details: wooden case
Delivery Time: 60-80 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SET/MONTH

Detail Information

Model: XFDM02B Anode Material: BDD
Cathode Material: Titanium Treatment Capacity: By Water Quality
Number Of Modules: 2-slot 4-module Area Of Anode Strip: 1.75m2

Product Description

Copper Recovery Equipment for Copper Sulfate Waste Solution



The copper sulfate waste solution is directly electrolyzed using a copper sulfate electrolysis equipment to reduce the copper ion concentration to below 0.5 g/L, resulting in obtaining plate-shaped electrolytic copper. The waste solution obtained after electrolysis contains low concentration of sulfuric acid and can be discharged directly to the wastewater station for alkaline neutralization treatment.

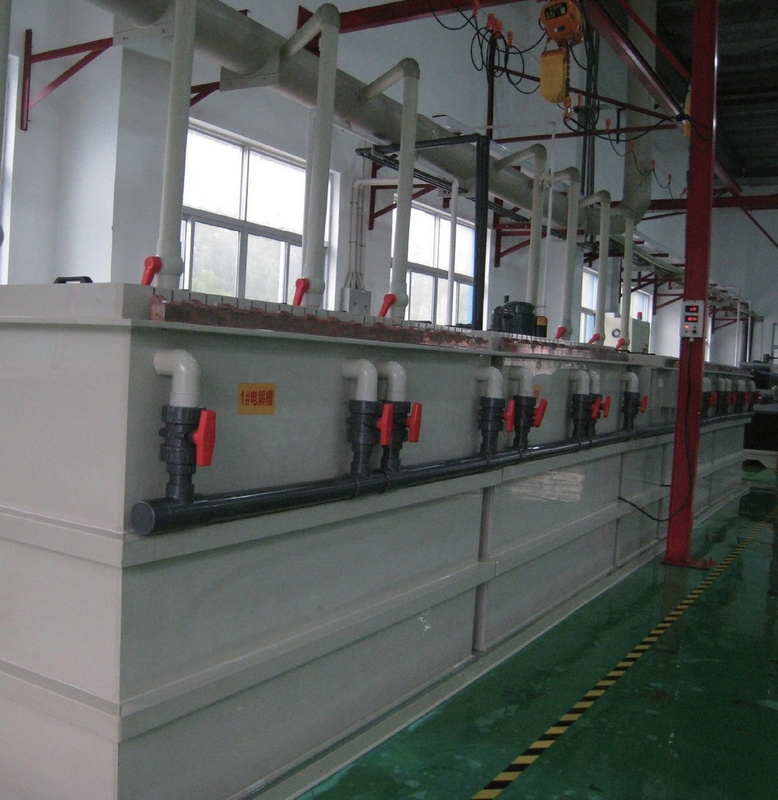

Copper Recovery Equipment for Copper Sulfate Waste Solution 0



Specifications:





Equipment model XFDM01 XFDM02 XFDM04
Equipment dimension (L×W×H, mm) 1094 x 794 x 1844 1392 x 1247 x 2048 1900 x 1500 x 1850
Operating weight of equipment(kg) 972 1947 650
Number of modules 1-slot 2-module 2-slot 4-module 4-slot 8-module
Anode material BDD
Cathode material Ti
Area of anode strip(㎡) 0.88 1.75 3.5
Treatment capacity(m³/h) By water quality
Single-batch processing time(h) By water quality
Design circulating flow(m³/h) 10 20 30
Head loss at design circulating flow(KPa) 20 20 40
Installed power(Kw) 10 20 40
Service power(Kw) ≤7 ≤12 ≤20
Current density(mA/c㎡) ≤70(≤301 A) ≤70(≤602 A) ≤70(≤1204 A)
Maximum heating power(Kw) 2.79 5.6 14
Input voltage AC 380 V/50 Hz AC 380 V/50 Hz AC 380 V/50 Hz
Power output DC 500 A/20 V DC 1000 A/20 V DC 2000 A/20 V
Operating ambient temperature 0 ℃ ~ 40 ℃
Relative humidity ≤90%
Installation method Indoor
Circulating water pump None
Pressure protection Optional
Temperature protection Optional
Inlet diameter DN50 flange DN50 flange DN80 flange
Outlet diameter DN50 flange DN50 flange DN80 flange
