COD Reduction PVA Waste Water Treatment System
COD Reduction PVA Waste Water Treatment System

COD Reduction PVA Waste Water Treatment System

Product Details:
Place of Origin: CHINA
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: XFDM01B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: NEGOTIATION
Packaging Details: wooden case
Delivery Time: 60-80 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SET/MONTH
Contact Now

Detail Information
Model: XFDM01B Anode Material: BDD
Cathode Material: Titanium Treatment Capacity: By Water Quality
Number Of Modules: 1-slot 2-module Area Of Anode Strip: 0.88m2
Highlight:

COD Reduction Waste water Treatment System

,

PVA Waste water Treatment System

Product Description

COD Reduction PVA Waste water Treatment System



FLEXIBLE USAGE:explosion-proof case can be made according to requirements;

EASY OPERATION:power integrated switch control, without separate electric control cabinet, easy to operate;

SMALL FLOOR AREA: a single module occupies a small floor area, with a simple appearance and reserved water inlet and outle;

COMPLETE FUNCTIONS:the interior is equipped with a hand pump, temperature and pressure switch, filter, etc., and a circulating barrel externally connected can be used.

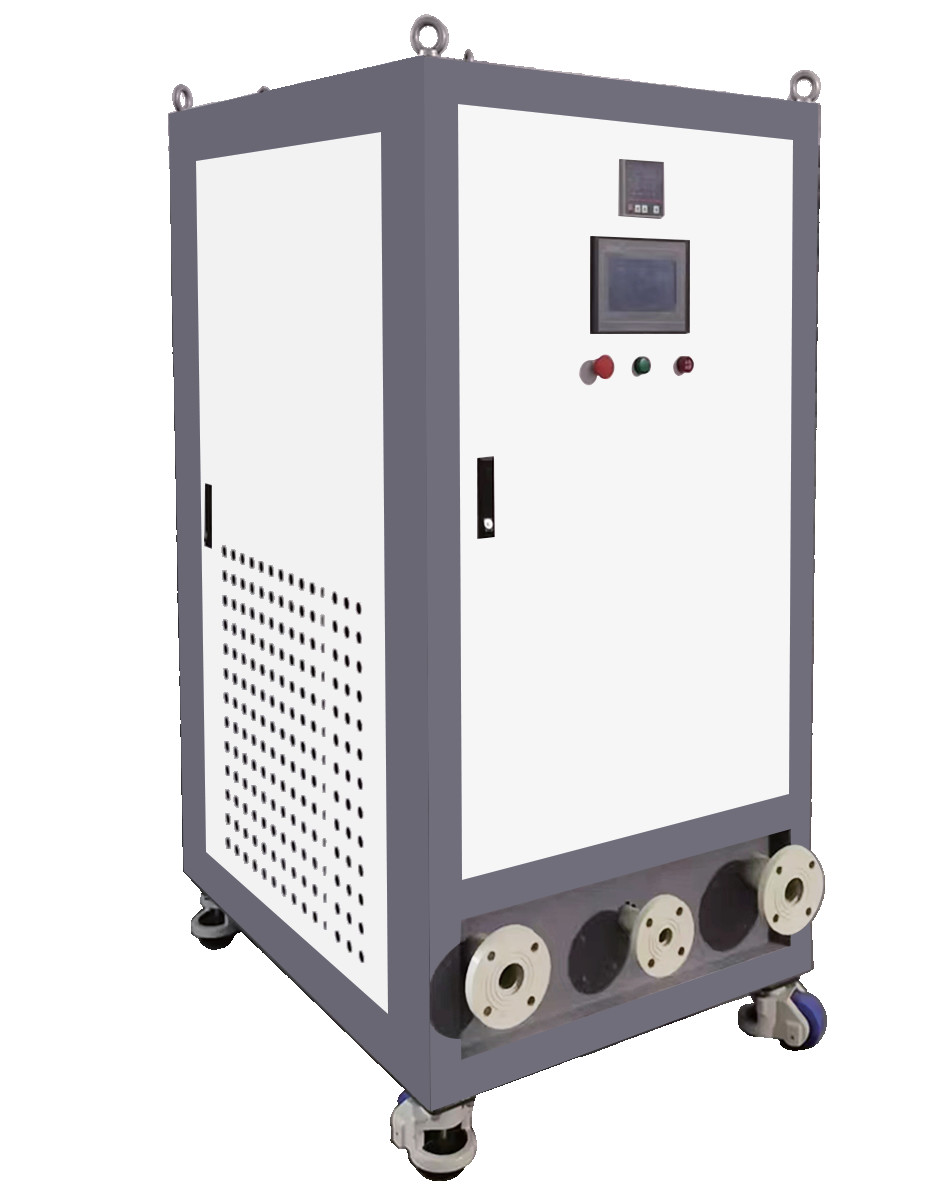

COD Reduction PVA Waste Water Treatment System 0

Specifications:

Equipment model XFDM01B XFDM02B XFDM04B
Equipment dimension (L×W×H, mm) 1497 x 1234 x 1897 1392 x 1247 x 2048 2172 x 1764 x 2666
Operating weight of equipment(kg) 1275 1997 1867
Number of modules 1-slot 2-module 2-slot 4-module 4-slot 8-module
Anode material BDD
Cathode material Ti
Area of anode strip(㎡) 0.88 1.75 3.5
Treatment capacity(m³/h) By water quality
Single-batch processing time(h) By water quality
Design circulating flow(m³/h) 10 20 30
Head loss at design circulating flow(KPa) 20 20 40
Installed power(Kw) 10 20 36
Service power(Kw) ≤7 ≤12 ≤26
Current density(mA/c㎡) ≤70(≤301 A) ≤70(≤602 A) ≤70(≤1204 A)
Maximum heating power(Kw) 2.79 5.6 11.2
Input voltage AC 380 V/50 Hz AC 380 V/50 Hz AC 380 V/50 Hz
Power output DC 500 A/20 V DC 1000 A/20 V DC 500 A/72 V
Operating ambient temperature 0 ℃ ~ 40 ℃
Relative humidity ≤90%
Installation method Indoor
Circulating water pump 40 FPZ-18 TG - 40032 TG - 50052
Filter Bag type 50 μm
Pressure protection √
Temperature protection √
Inlet diameter DN50 flange DN50 flange DN65 flange
Outlet diameter DN50 flange DN50 flange DN65 flange
