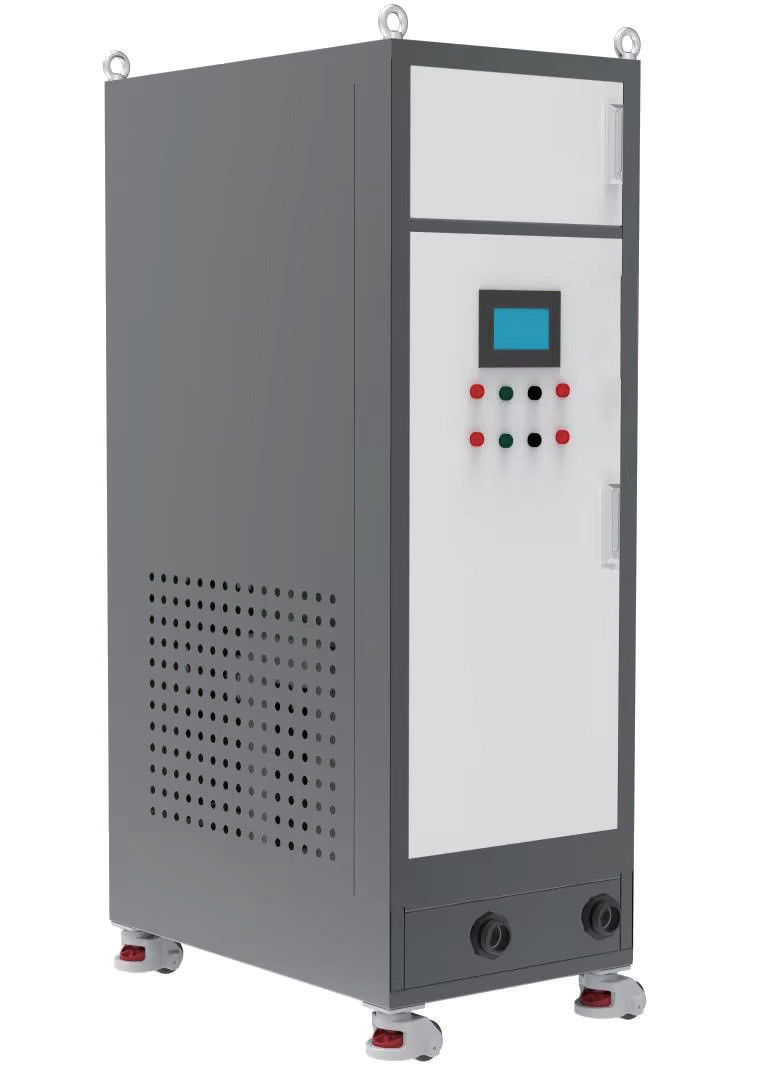

High COD Emulsion Waste Water Treatment System
High COD Emulsion Waste Water Treatment System

High COD Emulsion Waste Water Treatment System

Product Details:
Place of Origin: CHINA
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: XFDM01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: NEGOTIATION
Packaging Details: wooden case
Delivery Time: 60-80 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SET/MONTH
Contact Now

Detail Information
Model: XFDM01 Anode Material: BDD
Cathode Material: Titanium Treatment Capacity: By Water Quality
Number Of Modules: 1-slot 2-module Area Of Anode Strip: 0.88m2
Highlight:

High COD Waste water Treatment System

,

Emulsion Waste water Treatment System

Product Description

Integrated Slot-Type Waste water Treatment System





MULTIPLE SERIES CONNECTIONS: the design is modular, and multiple modules can be connected in series as required；

FLEXIBLE USAGE:explosion-proof case can be made according to requirements;

SMALL FLOOR AREA:A single module occupies a small area, with simple appearance and reserved water inlet and outlet.



High COD Emulsion Waste Water Treatment System 0



Specifications:



Equipment model XFDM01 XFDM02 XFDM04
Equipment dimension (L×W×H, mm) 1094 x 794 x 1844 1392 x 1247 x 2048 1900 x 1500 x 1850
Operating weight of equipment(kg) 972 1947 650
Number of modules 1-slot 2-module 2-slot 4-module 4-slot 8-module
Anode material BDD
Cathode material Ti
Area of anode strip(㎡) 0.88 1.75 3.5
Treatment capacity(m³/h) By water quality
Single-batch processing time(h) By water quality
Design circulating flow(m³/h) 10 20 30
Head loss at design circulating flow(KPa) 20 20 40
Installed power(Kw) 10 20 40
Service power(Kw) ≤7 ≤12 ≤20
Current density(mA/c㎡) ≤70(≤301 A) ≤70(≤602 A) ≤70(≤1204 A)
Maximum heating power(Kw) 2.79 5.6 14
Input voltage AC 380 V/50 Hz AC 380 V/50 Hz AC 380 V/50 Hz
Power output DC 500 A/20 V DC 1000 A/20 V DC 2000 A/20 V
Operating ambient temperature 0 ℃ ~ 40 ℃
Relative humidity ≤90%
Installation method Indoor
Circulating water pump None
Pressure protection Optional
Temperature protection Optional
Inlet diameter DN50 flange DN50 flange DN80 flange
Outlet diameter DN50 flange DN50 flange DN80 flange
