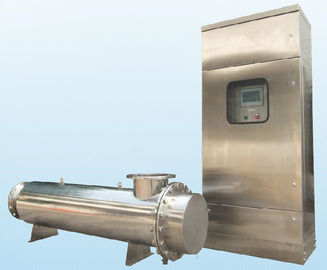

Stainless Steel Pipeline Ultraviolet Disinfection Unit 220V / 380V With CE Certificate

Product Details:
Place of Origin: CHINA
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GB-320-2-UV
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: wooden case
Delivery Time: 40-45 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 set/month

Detail Information

Material: Stainless Steel System Type: Pipeline
Power Requirement: 220V / 380V, 50Hz Lamp Origin: Lightsource
Water Pressure: ≤0.6Mpa UV Lamps: US Imported, 320 W / L
High Light:

wastewater uv disinfection systems

,

ultraviolet water purification system

Product Description

Stainless Steel pipeline Ultraviolet Disinfection System with CE Certificate





What is UV?



Ultraviolet (UV) is part of the light from the sun. Compared to X-rays, the frequency of the UV spectrum is higher than that of visible light, and the frequency is low. This also means that the UV spectrum has a larger wavelength than X-rays and a smaller wavelength than visible light, and the energy level from low to high is visible light, UV, not X-ray. As a water treatment technique, UV is known to be an effective disinfectant due to its strong germicidal (inactivating) ability. UV disinfects water containing bacteria and viruses and can be effective against protozoans like, Giardia lamblia cysts or Cryptosporidium oocysts. UV has been used commercially for many years in the pharmaceutical, cosmetic, beverage, and electronics industries, especially in Europe. In the United States, it was used for drinking water disinfection in the early 1900s century, but was abandoned due to high operating costs, unreliable equipment, and the increasing popularity of chlorination.





How Does UV Disinfection System Work?



In the UV water disinfection technology, the UV light disinfects by penetrating microorganisms and destroying their DNA. DNA plays an important role in organisms’ functions and reproduction hence destroying the DNA prevents the organism from being active and multiplying. This UV energy (wavelength of 240-280 nm) is also naturally found in sunlight in very small quantities. The same energy is produced in stronger intensities with help of high mercury discharge lamps, commonly known as UV lamps.





Advantages of UV water treatment



Effective: UV disinfection can inactivate virtually all microorganisms



Economy: Hundreds of gallons are purified for each penny of operating cost.



Safety: No danger of overdosing, no addition of chemicals.



Fast: Water is ready for used as soon as it leaves the purifier - no need to touch the time.



Simple: easy to install and maintain.



Automatic: Provides continuous or intermittent disinfection without special attention or measurement.



No chemical composition: no chlorine taste or corrosion problems.





Comparison to Other Sterilization Methods



CONVENTIONAL METHODS OF WATER TREATING
Disinfection Methods CHLORINE OZONE ULTRA VIOLET
Capital cost Lowest High Low
Ease of installation Good Poor Excellent
Ease of Maintenance Good Poor Excellent
Cost of Maintenance Medium High Lowest
Operating Cost Low High Low
Frequency Of Maintenance Frequent Continuous V. Infrequent
Control System Poor Good Excellent
Virucidal Effect Good Poor Good
Toxic Chemical Yes Yes No
Residual Effect Problem with Yes Yes No
Hazards High Yes Low to none
Contact Time 30 - 60 minutes High 1 – 5seconds
Disinfection Performance Leaves some pathogens Kills all microbes Kills all microbes
Effect on Water Organochlorine compounds, Taste & pH changes Unknown None
The Ultra violet dose required for destruction is about the same for each virus, while higher dose of chlorine and ozone needed.
