Customized GR1 Titanium Anode Nano Coating 100g/m2

Product Details:
Place of Origin: China
Brand Name: Geemblue
Model Number: EC-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 25-35 work days
Supply Ability: 1000 set per month

Detail Information

Base Metal: GR1/GR2 Titanium Working Temperature: 0~60℃
Technology: Nano Coating Content Of Noble Metal: 10g/m2-100g/m2
Input Current: 1~500A Application: Water Treatment
Production: Sodium Hypochlorite Coating: Ru-Ir-Pt
Input Voltage: 0~48V
High Light:

Customized GR1 Titanium Anode


Titanium Anode Nano Coating

Product Description

Customized GR1 Titanium Anode Nano Coating 100g/m2

Product Description:

Mixed Metal Oxide (MMO) titanium anode, or DSA (Dimensionally Stable Anode) and DSE (Dimensionally Stable Electrode) are types of titanium anodes with a coating. This coating gives them good electric catalytic activity and electrical conductivity as it is brushed onto the titanium substrate.

Adding this coating makes titanium anodes more effective and efficient, meaning that they can be used for a variety of applications. This coating also ensures that the anodes are more durable and can withstand harsh environments for longer periods of time.



Titanium anode is known for its stability in size, which means that the distances between each electrodes in the process remain the same. That makes it possible for the electrolytic process to be operated in the same condition and maintaining the same voltage.

More importantly, compared to other electrodes, this type of anode mainly features low operating voltage and low power consumption, making it possible for the DC power consumption to be reduced by 10% to 10%. It also has high anti-corrosion capability & lasting working life.

In addition, Titanium anode is also capable of overcoming the dissolving problem of graphite anode and lead anode in the electrolyte and avoiding product contamination. It has properties of high current density, small overpotential, and high catalytic activity which effectively improves the efficiency of production.

Moreover, it can easily avoid the short circuit of the lead anode after deformation problem, further improving the current efficiency. It is easy to shape and has high degree of refinement. The titanium substrate can even be reused. Thanks to its lower overpotential features, it can make the surface of electrodes and electrode bubbles easily excluded, reducing the voltage in the electrolytic cell.

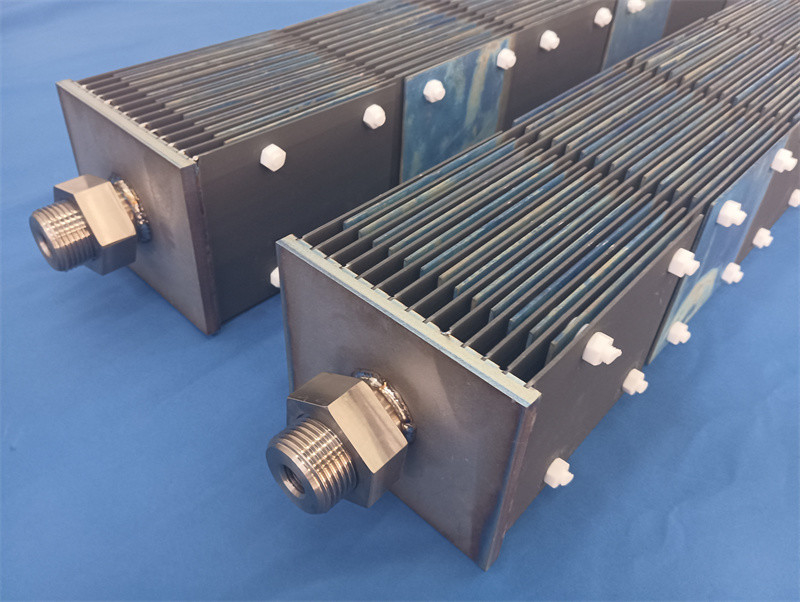

Customized GR1 Titanium Anode Nano Coating 100g/m2 0


Technical Parameters:

The product has a black surface with a uniform coating, along with multiple features such as strong endurance, low chlorine-evolution potential, extended service life, and high current efficiency.

It has a working current range of 2000A/㎡ to 10000A/㎡, is designed for working temperatures of 25~80℃, and can tolerate a PH range of 0~14 (except for HCI). The coating metal consists of Ru, Ru+Ir, Ru+Ir+Sn, Rare earth+Ru, etc, and Ruthenium content can be as low as 8g/㎡ while coating thickness is 2~10μm.



The Chlor-alkon industry is a major field of electrochemical engineering. It covers a wide range of activities including diaphragm alkali process, chlorate industry, electrochemical chlorination of sea water and the production of chlorine dioxide through electrowinning. Acidic water electrolysis and ionized water electrolysis are also techniques used in the production of chlorine. Electrodialysis can also be used to produce the desired product. Additionally, power plants can use circulating water sterilization alga instead of chemical products.

Finally, electrowinning can also be used to extract metals from chloride solutions. By making use of a suitable method, it is possible to complete all the necessary steps in the chlor-alkali industry.



Customized Services for Geemblue Titanium Electrode Products

Geemblue offers customized services for its titanium electrode products, model EC-100. With a life time of 2-5 years, the titanium anode can be used to construct electrolytic cells with an input voltage of 10-48V and an input current of 1-500A. It is coated with advanced nano-coating technology and is suitable for use in a wide range of pH levels, from 1 to 14.

Geemblue titanium electrodes are ideal for applications in electrolysis cells, offering superior performance and reliability. With its robust titanium construction, the EC-100 model can withstand high temperatures, pressures and corrosive environments.

For more information about Geemblue's titanium electrodes, please contact us directly.


Packing and Shipping:

Packaging and Shipping of Titanium Electrode Products

Titanium electrode products are packaged and shipped in protective packaging to minimize damage. The packaging includes:

  • Fumigation free wooden case
  • Bubble wrap or other protective material

The shipping carrier used for titanium anode depends on the size and weight of the order. Small orders may be shipped via USPS, while larger orders may require a freight carrier. All shipments are tracked and insured for safe delivery.
