China Sodium Hypochlorite Generator manufacturer

≥1.0um Thickness Titanium Electrode Group For Fruit And Vegetable Washing Machine

Product Details:
Place of Origin: CHINA
Brand Name: GEEMBLUE
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 2 Sets
Packaging Details: wooden case
Delivery Time: 45-55 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SET/MONTH

Detail Information

Shape: Long Plate Shaped Combined Electrode Group Aperture: Connection Hole 7.5mm
Coating Thickness: ≥1.0um Coating Type: Titanium And Precious Metal Coating
Work Equipment: Large Cooling Water Treatment Equipment Advantage: Long Service Life
High Light:

titanium anodes cathodic protection


mixed metal oxide electrode

Product Description

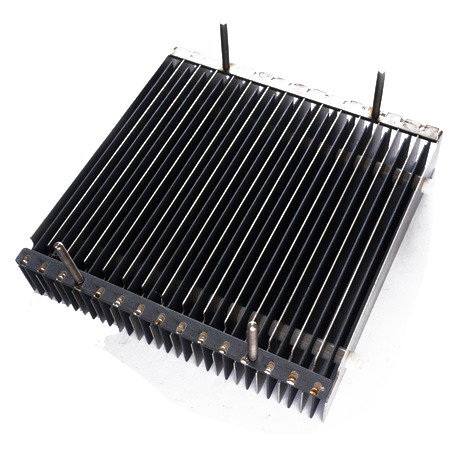

≥1.0um Thickness Titanium Electrode Group For Fruit And Vegetable Washing Machine


Product introduction

This product is mainly used in chlor-alkali industry, functional water production, electroplating industry, and cathodic protection in containers. Chlorine gas separation has low potential, high efficiency, and long service life, which makes it have excellent performance, far exceeding the average compared with similar products.



Product performance description

≥1.0um Thickness Titanium Electrode Group For Fruit And Vegetable Washing Machine 0

●chain type nano coating
●first grade pole reverse electrode
●low electric potential for chlorine separation,high electrolytic efficiency
●uniform and sturdy coating
●long service life



Product parameters


Shape  Long plate shaped combined electrode group
Size  Single 50mmX250mm
Aperture  connection hole Φ7.5mm
Coating ingredient  RuO2+IrO2 (special ratio)
Coating thickness  ≥1.0um
Production process  pickling, sintering, nano-coating
Work equipment  Large Cooling Water Treatment Equipment



Electrolytic group inside fruit and vegetable washing machine.
By electrolyzing the diluted salt water, a mixed solution of ozone and low concentration of sodium hypochlorite is produced and used for the disinfection and treatment of bacteria, insect pests and pesticide residues in fruits and vegetables.


Working principle

electrolysis will generate sodium hypochlorite and ozone, their strong oxidizing power can kill bacteria and insect. In addition, some residual pesticides will be decomposed by electrolysis as well.



practical application

The shape, size, coating thickness, aperture size, number of holes, capable electrolytic cell, all can be customized according to Customers’ drawings, and the proportion of germanium is not the same for different applications.
