China Sodium Hypochlorite Generator manufacturer

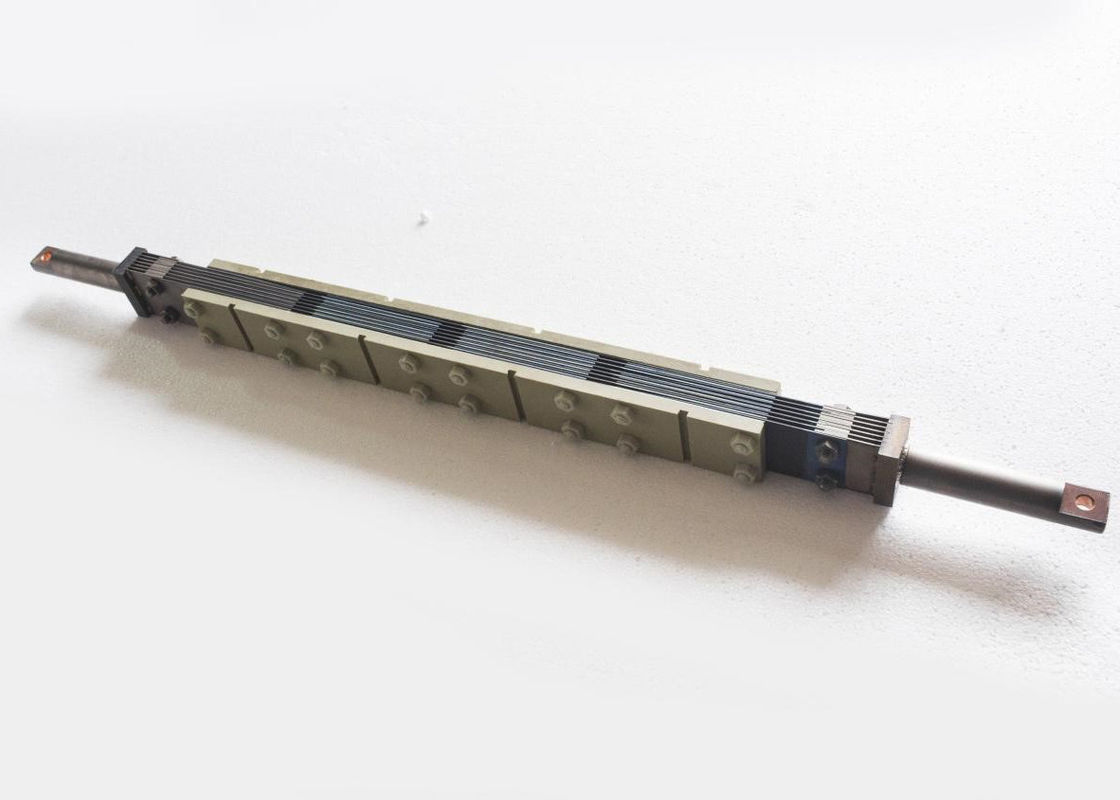

Precious Metal Coating Titanium Electrode Products Seawater Chlorine Electrolysis Cell

Product Details:
Place of Origin: CHINA
Brand Name: GEEMBLUE
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 2 Sets
Packaging Details: wooden case
Delivery Time: 45-55 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SET/MONTH

Detail Information

Shape: Long Board Combination, Long Mesh Combination Aperture: Requested By The Customer
Coating Thickness: ≥1.0um Coating Type: Titanium And Precious Metal Coating
Work Equipment: Swimming Pool Disinfection Machine Advantage: Chain Type Nano Coating
High Light:

titanium anodes cathodic protection


mixed metal oxide electrode

Product Description

Electrode of electrolysis seawater chlorine electrolysis cell


Product introduction

This product is mainly used in chlor-alkali industry, functional water production, electroplating industry, and cathodic protection in containers. Chlorine gas separation has low potential, high efficiency, and long service life, which makes it have excellent performance, far exceeding the average compared with similar products.



Product performance description

Precious Metal Coating Titanium Electrode Products Seawater Chlorine Electrolysis Cell 0

● chain type nano coating
● first grade pole reverse electrode
● low electric potential for chlorine separation,high electrolytic efficiency
● uniform and sturdy coating
● long service life



Product parameters


Shape  Long board combination, long mesh combination
Size  Variety (by customer request or select size)
Aperture  Requested by the customer
Coating ingredient  RuO2+IrO2 (special ratio)
Coating thickness  ≥1.0um
Production process  pickling, sintering, nano-coating
Work equipment  Swimming Pool Disinfection Machine



Seawater electrolysis. It is applied to the production of NaOH, Cl2 and H2 in the chlor-alkali industry or ammonia production by electrolysis of concentrated seawater, and it can be applied for seawater pollution prevention as well. Due to the harsh electrolytic environment, the life of ordinary electrodes is extremely short and the effect is not as good as that of the helium electrodes.


Working principle

The anode undergoes oxidation reaction between chloride ions and hydroxide ions, produces products such as Cl2 and HClO. A series of chloralkali industrial raw materials and products including sodium hypochlorite, NaOH, Cl2 and H2 are produced by electrolysis of concentrated seawater. At the same time, these available chlorines also kill sea creatures for marine anti-fouling.



Practical application

The shape, size, coating thickness, aperture size, number of holes, capable electrolytic cell, all can be customized according to Customers’ drawings, and the proportion of germanium is not the same for different applications.
