China Sodium Hypochlorite Generator manufacturer

ISO9001 Titanium Electrode Products / Titanium Coated Electrode Group Of Sodium Hypochlorite Generator

Product Details:
Place of Origin: CHINA
Brand Name: GEEMBLUE
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 2 Sets
Packaging Details: wooden case
Delivery Time: 45-55 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SET/MONTH

Detail Information

Shape: Cubic Welded Electrolytic Cell Aperture: Prismatic Hole, Long Intercept 4mm, Short Intercept 2mm
Coating Thickness: ≥1.0um Coating Type: Titanium And Precious Metal Coating
Work Equipment: Metallurgical Electrolyzers Advantage: Chain Type Nano Coating
High Light:

titanium anodes cathodic protection


mixed metal oxide electrode

Product Description

Titanium coated electrode group of sodium hypochlorite generator


Product introduction

This product is mainly used in chlor-alkali industry, functional water production, electroplating industry, and cathodic protection in containers. Chlorine gas separation has low potential, high efficiency, and long service life, which makes it have excellent performance, far exceeding the average compared with similar products.



Product performance description

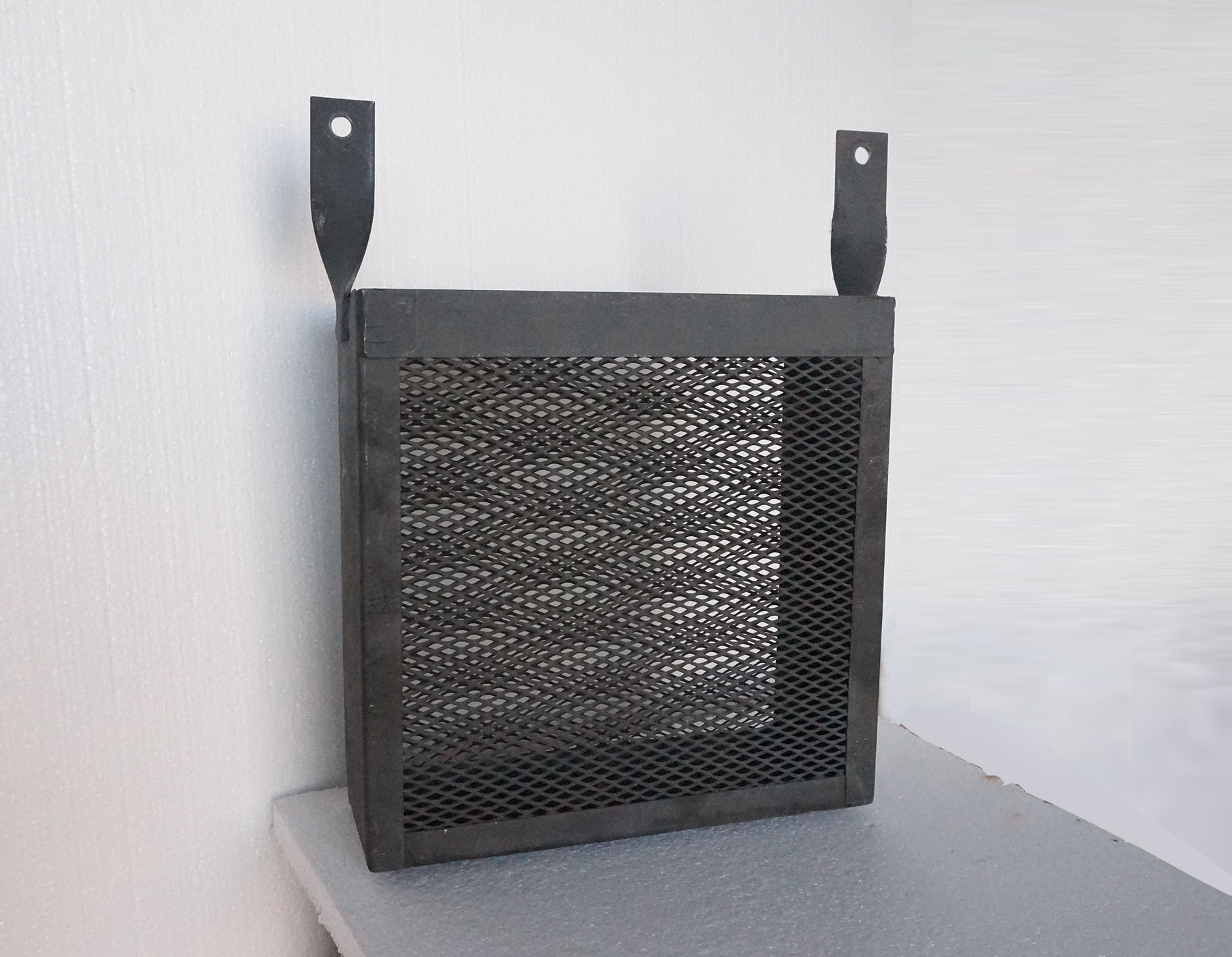

ISO9001 Titanium Electrode Products / Titanium Coated Electrode Group Of Sodium Hypochlorite Generator 0

● chain type nano coating
● first grade pole reverse electrode
● low electric potential for chlorine separation,high electrolytic efficiency
● uniform and sturdy coating
● long service life



Product parameters


Shape  Cubic welded electrolytic cell
Size  Bottom surface 120mmx360mm, height 420mm
Aperture  Prismatic hole, long intercept 4mm, short intercept 2mm
Coating ingredient  RuO2+IrO2 (special ratio)
Coating thickness  ≥1.0um
Production process  pickling, sintering, nano-coating
Work equipment  metallurgical electrolyzers



Electrolytic extraction of colored precious metals. Electrolytic extraction of the metal has high requirement for electrode, it requires stable anode, corrosion resistance, long-term use capability, and the electrocatalytic activity for the anode process is to reduce the overpotential and cell voltage of the anode reaction. The present niobium titanium electrode satisfies the above requirements and also has an activation effect on the anode reaction. At the same time, the addition of niobium also lengthening the service life.


Working principle

Precise electronic equipment like mobile phones contains a certain amount of precious metals (Ag, Pt, Au). In order to recover them, other metal impurities will be removed in the first place, and then dissolved by electrolysis under strong acid conditions, then gather and collect the ions after that.



practical application

The shape, size, coating thickness, aperture size, number of holes, capable electrolytic cell, all can be customized according to Customers’ drawings, and the proportion of germanium is not the same for different applications.
