China Sodium Hypochlorite Generator manufacturer

100g/H To 5kg/H Titanium Electrode Products Electrolytic Cell Working At 0~60℃ For Noble Metals

Product Details:
Place of Origin: China
Brand Name: Geemblue
Certification: CE, ISO9001
Model Number: EC-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 50set/month

Detail Information

Electrolyte: Brine/sea Water Appearance: Customized
Output: 100g/h To5kg/h PH Level: 1~14
Input Current: 52A Content Of Noble Metal: 10g/m2-100g/m2
Input Voltage: 10~25V Coating: Ru-Ir-Pt
Base Material: Titanium
Highlight:

Electrolytic Cell Titanium Electrode Products

,

Titanium Electrode Products For Noble Metals

Product Description

High-Quality 100g/h to 5kg/h Electrolytic Cell – Working at 0~60℃ for Noble Metals

Product Description:

This series of products is a ruthenium iridium titanium electrode, which is made of high-performance titanium material as the main substrate of the electrode sheet and coated with a certain proportion of ruthenium iridium precious metal.

This product is mainly used in the production of chlor-alkali industry, as well as in the electrolysis production of functional water, electroplating industry, ship cathodic protection, etc. In these applications, this series of products have many advantages that exceed the industry average level.

For example, in the production of sodium hypochlorite disinfectant by electrolysis, the electrode plates of this series have a much lower chlorine evolution potential than other electrode plates, resulting in lower energy consumption for other side reactions and electrode heating compared to other electrode plates. This ensures electrolysis efficiency while also reducing work energy consumption and extending service life.

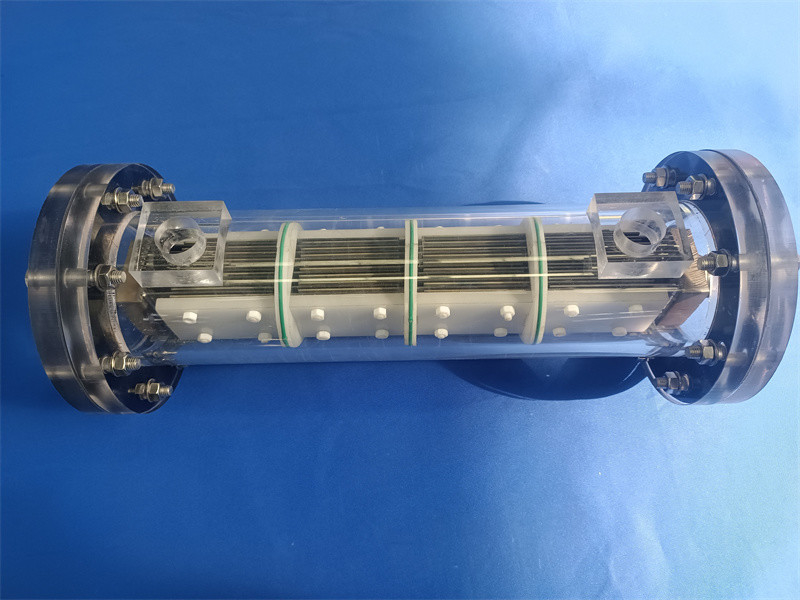

100g/H To 5kg/H Titanium Electrode Products  Electrolytic Cell Working At 0~60℃ For Noble Metals 0



Features:

We have developed a new coating process - the chain nano coating process - which forms a regular geometric structure chain between RuO2 and IrO2 in the coating. This provides a much tighter and firmer connection between the coating and the substrate, and thus increases the uniformity of the coating thickness; significantly improving the service life.

Additionally, the decrease in chlorine evolution potential for this process is particularly noteworthy since it is so beneficial in the application of the chlor alkali industry; electrolysis of hydroxide ions will no longer be excessive which makes electrolysis far more efficient and economical. The lower chlorine evolution potential is due to the unique composition ratio and regular nano chain structure.

The new chain coating process has a higher activity of precious metals due to the reasonable proportion of precious metals and its binding structure, therefore it is more sensitive to electrolytic reactions. This increases its efficacy under harsh conditions. Tests have shown that its service life is far higher than similar products on the market, with a current density of 40000 A/m2 and a 1 mol/L H2SO4 electrolyte, it can work stably and continuously for more than 60 hours.



Applications:

The chlorine industry is one of the oldest and largest chemical industries. It involves the production of sodium hypochlorite and the electrolytic production of chlorine dioxide.

Sea water electrolysis and chlorination is also an important part of the chlorine industry. The process is used to sterilize circulating water to avoid algae build-up, as well as to deposit metals in chloride systems via electrochemical deposition.

Chlorine can also be used for water treatment. Electrodes put into saline water are used in the process of electrodialysis to separate ions such as sodium and chloride. This process can be used for potable water and seawater desalination, ion exchange, and treating wastewater.



Customization:

Titanium Electrode Products

Brand Name: Geemblue
Model Number: EC-100
Place of Origin: China
Life Time: 2~5 years
Technology: Nano Coating
Base Metal: GR1/GR2 Titanium
Content of Noble Metal: 10g/m2-100g/m2
Application: Water Treatment

Geemblue's EC-100 Titanium Electrode is the perfect choice for your water treatment needs. Constructed with GR1/GR2 Titanium and coated with a Nano Coating, this product is a top-tier choice for water treatment. With a life time of 2~5 years and a content of noble metal of 10g/m2-100g/m2, our Titanium Electrode Products are the best on the market.



Packing and Shipping:

Packaging and Shipping for Titanium Electrode Products

Titanium electrode products are packaged with care to ensure that the product reaches the customer in perfect condition. Each product is placed in its own box, and the box is reinforced with extra padding and bubble wrap. All products are properly labeled with the brand name and product model. Once packaged, the product is ready for shipping.

We provide both domestic and international shipping options for our customers. All orders are shipped via a reliable carrier such as UPS, FedEx, or DHL. We also provide express shipping for rush orders. We track all shipments to ensure that the product is delivered in a timely manner.
