Long Blade Shape Titanium Electrode Products , Titanium Anodes Cathodic Protection

Product Details:
Place of Origin: China
Brand Name: Geemblue
Certification: ISO9001 CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set/month

Detail Information

Shape: Long Blade Shape Size: 25mmX40mm
Aperture: Round Hole 1mm Coating Ingredient: RuO2+IrO2 (normal Ratio)
Work Equipment: Physiotherapy Equipment Electrolyzer Temperature: <60°C
High Light:

titanium anodes cathodic protection


mixed metal oxide electrode

Product Description

Long Blade Shape Titanium Electrode Physiotherapy Equipment Electrolyzer



Introduction of electrodes


Electrodes (Anodes & Cathodes) consist of a basic component, which is responsible for mechanical stability and uniform current distribution. As Titanium has all these character, insoluble electrodes are manufactured with titanium as basic component. Occasionally electrodes are also made from Nb, Ta and or Zr. In general, electrodes are available in the form of plate, mesh, rod, wire, ribbon, and customs built. Electro catalytically selective Electrodes from Titanium are superior to conventional Nickel, Lead, Lead alloy, Steel, Graphite & Magnetite Electrodes.



Working principle


Oxygen is produced and gathered together by water electrolysis under Direct current, for the purpose of killing anaerobic bacteria.





1. We introduced a new coating process from German AG Group: A chain-type nano coating process, it makes RuO2 and IrO2 a regular geometric chain in the coating, and the bonding between coating and substrate become much tighter and firmer, coating becomes more uniform and greatly extends the service life


2. Decrease the electric potential for chlorine ion separation. The chlorine electrolysis reaction is the basic reaction of the chlor-alkali industry. The decrease of the electric potential means that during the electrolysis, other reactions will not be excessively carried out such as the electrolysis of water, and the electrolysis efficiency will be increased therefore. With the advance ingredients in certain proportion and the regular nano-chain structure, the eletric potential of this series of electrodes is far lower than that of similar products on the market, and therefore it has performed exceptionally well in the chlor-alkali industry.


3. High activity. Compared to the old process, the new type of chain coating has high noble metal activity and fast-reaction in electrolysis due to its reasonable precious metal proportion and the combination structure of precious metals.


4. Longer service life. Thanks to a more optimized structure, the service life of this series of electrodes is extended, and it can be continuously and stably operated under strong acid and alkali. Under a current density of 40000 A/m2 and an electrolyte of 1 mol/LH2SO4, Electrode pads can continue to work steadily for more than 60 hours.






Physiotherapy foot tub. The foot is sterilized by a low concentration of oxygen generated during water electrolysis. Compared to similar products, it has high electrolysis efficiency and economic benefits and suitable for low-power electrolytic cells.





Titanium Electrode
Material Gr1 Titanium as substrate, mixed Ruthenium-Iridium-Titanium oxide as coating

Coating ingredient


RuO2+IrO2 (special ratio)
Technology pickling, sintering, nano-coating
Dimension & Shape Different dimension is available, or according to client's drawing
Shape Different shape is available, or according to client's drawing
Working Parameter

Current density≤10000mA/M2


PH: 1-14

Fluoride ion concentration: <50mg/L

Coating thickness: ≥1.0um


Titanium anode also called MMO anode, DSA & Insoluble anode

Cathode also be provided

Packing Wooden case
MOQ Flexible, sample order acceptable

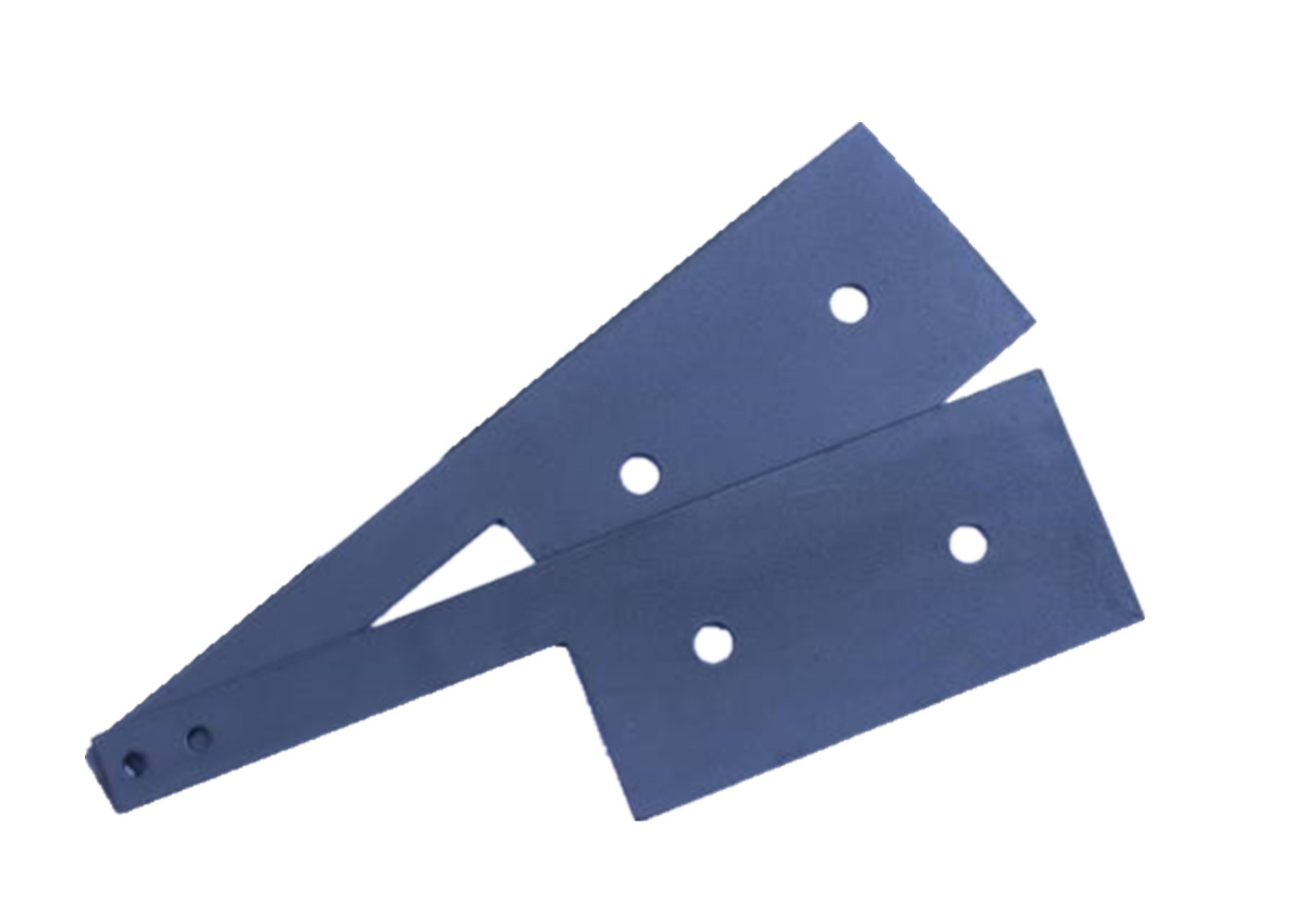

Long Blade Shape Titanium Electrode Products , Titanium Anodes Cathodic Protection 0
