China Sodium Hypochlorite Generator manufacturer

Double Long Plate Welding Electrodes Group For Swimming Pool Disinfection

Product Details:
Place of Origin: China
Brand Name: Geemblue
Certification: ISO9001 CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set/ month

Detail Information

Shape: Double Long Plate Welding Electrode Group Size: Single Electrode 50mmX250mm
Aperture: No Hole Production Process: Pickling, Sintering, Nano-coating
Work Equipment: Swimming Pool Water Disinfection Machine PH Value: 1-14
High Light:

titanium anodes cathodic protection


mixed metal oxide electrode

Product Description

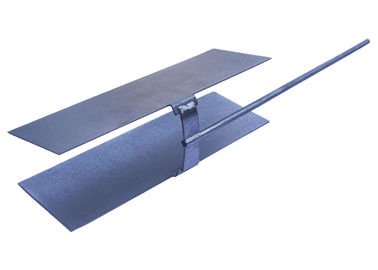

Double Long Plate Welding Electrode Group for Swimming pool Disinfection



Introduction of electrodes


Electrodes (Anodes & Cathodes) consist of a basic component, which is responsible for mechanical stability and uniform current distribution. As Titanium has all these character, insoluble electrodes are manufactured with titanium as basic component. Occasionally electrodes are also made from Nb, Ta and or Zr. In general, electrodes are available in the form of plate, mesh, rod, wire, ribbon, and customs built. Electro catalytically selective Electrodes from Titanium are superior to conventional Nickel, Lead, Lead alloy, Steel, Graphite & Magnetite Electrodes.



Working principle


Electrolysis NaCl solution to produce sodium hypochlorite solution and produce ozone by low pressure electrolysis. Both have good performance on disinfection and sterilization and are very suitable for large-scale disinfection and cleaning. Compared to other finished disinfectants, electrolysis is much cheaper and more convenient.





Swimming pool disinfection. Most of the large swimming pools use disinfectants for sterilization, and some use ozone- and hypochlorous acid solutions for disinfection. The electrode is used in the electrolysis equipment for the swimming pool disinfection, which is high electrolysis efficiency, low energy consumption, and capable of long-time working.



Titanium Anode
Material Gr1 Titanium as substrate, mixed Ruthenium-Iridium-Titanium oxide as coating
Technology Sand blasting, Acid washing and Brush Coating
Dimension & Shape Different dimension and shape is available, or according to client's drawing



Current density≤10000mA/M2


Salt water concentration 3~3.5%

Working Equipment Sodium Hypochlorite Generator
Electrolyte Salt water / Saline solution/ Brine/ Sea water

Titanium anode also called MMO anode, DSA & Insoluble anode

Cathode also be provided

Packing Wooden case
MOQ Flexible, sample order acceptable


Double Long Plate Welding Electrodes Group For Swimming Pool Disinfection 0
