China Sodium Hypochlorite Generator manufacturer

Easy Installation Titanium Insoluble Anode Ruthenium Iridium Coated For Water Disinfection

Product Details:
Place of Origin: China
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GB-500-EC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set/month

Detail Information

Application: Water Disinfection Chlorine Output: 500 G / H
Coating Thickness: ≥1.0um PH Value: 1-14
Material: Titanium, UPVC Temperature: <60°C
High Light:

titanium anodes cathodic protection


mixed metal oxide electrode

Product Description

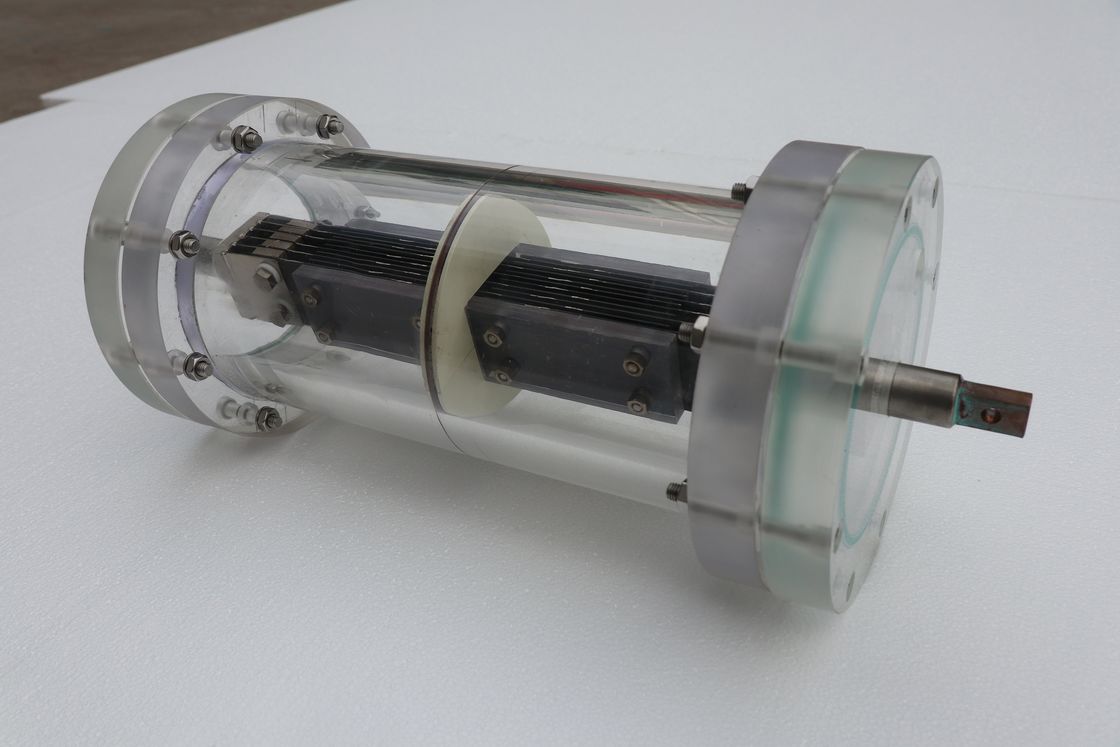

Ruthenium and Iridium Coated Titanium Anode Electrode for Water Disinfection



Electrolysis electrode:

plate type electrode, the anode and cathode are all made of pure titanium TA1; the cathode is protected while the anode is at lost during electrolysis, so the surface of the anode must be coated. Anode, nano technology treatment, a coating of 20 nm precision ruthenium iridium oxides with 25 times, 20 microns thickness, which ensure long-term and stable working life. Salt water swimming pool electrolyzer electrolysis anode cell, Water electrolysis machine tubular brine electrolyzer for water treatment systems.





1, Titanium anode long life, diaphragm production of chlor-alkali industry, the metal anode resistance to chlorine and alkali corrosion, anode life has been more than 6 years, while the graphite anode only 8 months.


2, can increase the current density. Diaphragm production of chlor-alkali, the graphite anode current density of 8A / dm2, titanium anode can be doubled to increase, up to 17A / dm2, so in the electrolysis plant, electrolyzer under the same conditions, the output can be increased by 1 times, Single tank production capacity, effectively improve the labor productivity. In the high operating current density for electrolysis, the use of titanium anode is more appropriate.


3, the use of DSA, mercury and diaphragm method of salt electrolytic cell design concepts and operating conditions can be improved, energy consumption can be reduced. DSA low over-potential characteristics, the electrode between the surface and the electrode bubble is easy to exclude, is the metal anode electrolytic cell voltage reduction of the important reasons.


4, corrosion resistance, and can be in many corrosive, with special requirements of the electrolytic medium work.




Ruthenium-Iridium-Titanium anode is used in water electrolysis, sewage treatment, caustic potash, cathodic protection, chlor alkali industry, production of chlorine dioxide, chlorate industry, hypochlorite industry, recycling of waste water, and production of persulphate, recycling of waste in galvanization plant, electrowinning and sterilization of food appliance.





Material Pure titanium
Working life ≥5 years
Technology Punching ,Pulling, Brush painting
Shape Tube, sheet, mesh sheet
Features • Large adaptability to different brine qualities
• Lower energy consumption
• High strength sodium hypochlorite
• Can be washed in order to restore the original permeability
• Harmless and environmental friendly, does not contain any restricted material
Applications Sodium Hypochlorite Generator, swimming pool disinfection, etc.
Certificate ISO 9001
Packing Wooden case
Payment terms T/T, L/C, Western Union, PayPal or as your requirements
Delivery 40 days
