Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Geemblue |
| Certification: | ISO9001 CE |
| Model Number: | GB-400-EC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 set/ month |
|
Detail Information |
|||
| Function: | Produce 0.8% Sodium Hypochlorite Liquid | Usage: | Brine Electrolysis |
|---|---|---|---|
| Current Density: | ≦10000mA/M2 | Coating Thickness: | ≥1.0um |
| Available Chlorine Output: | 400 G / H | Material Of Cell Body: | High Strength Organic Glass |
| High Light: | titanium anodes cathodic protection,mixed metal oxide electrode |
||
Product Description

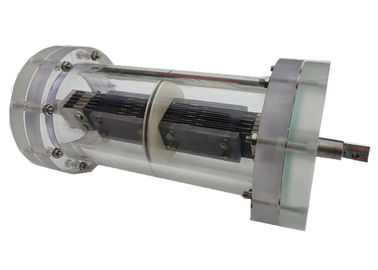

Low Overpotential MMO Titanium Anode High Electric Catalytic Property
Introduction of electrodes
Electrodes (Anodes & Cathodes) consist of a basic component, which is responsible for mechanical stability and uniform current distribution. As Titanium has all these character, insoluble electrodes are manufactured with titanium as basic component. Occasionally electrodes are also made from Nb, Ta and or Zr. In general, electrodes are available in the form of plate, mesh, rod, wire, ribbon, and customs built. Electro catalytically selective Electrodes from Titanium are superior to conventional Nickel, Lead, Lead alloy, Steel, Graphite & Magnetite Electrodes.
Features:
* High electric catalytic property
* High anti-corrosion property & lasting working life
* Keep the operating voltage stably
* Saving electricity
* Long service life
* Economical and need no maintenance
* Unique chain type nano coating
* first grade pole reverse electrode
* low electric potential for chlorine separation, high electrolytic efficiency
* uniform and sturdy coating
Electrode application
Electro-dialysis in waste water treatment, water conditioning and the synthesis of organic compounds.
Cathodic protection of various structures like offshore, ships, reinforcement bars in concrete.
Wet electro deposition of precious metals like Gold, Rhodium, Platinum, Palladium & Non-ferrous metals like Chromium, Nickel, Copper, Tin, Cobalt & Zinc.
Production of Chlorates, Perchlorate, Chlorine / Caustic, Hypochlorite.
Electrolytic production of chromic acid and Hydrogen from water.
Electrochemical Cleaning of electronic components.
Eelectrochemical Electro-galvanizing of Steel Strip.
Electrolytic metal recovery.
Electrophoresis.
Specification
| Material | Pure titanium |
| Dimension | Usually customized by your designs, drawings or requirements. |
| Working life | ≥5 years |
| Technology | Punching ,Pulling, Brush painting |
| Shape | Tube, sheet, mesh sheet |
| Main Working Parameters | I. Current density<2000A/M2. II. Temperature<60°C. III. PH 1~14. IV. Max content of Fluoride ion is 50mg/L |
| Features | • Large adaptability to different brine qualities • Lower energy consumption • High strength sodium hypochlorite • Can be washed in order to restore the original permeability • Harmless and environmental friendly, does not contain any restricted material |
| Applications | Sodium Hypochlorite Generator, swimming pool disinfection, etc. |
| Certificate | ISO 9001 |
| Packing | Wooden case |
| Payment terms | T/T, L/C, Western Union, PayPal or as your requirements |
| Delivery | 40 days |
