China Sodium Hypochlorite Generator manufacturer

Titanium Anode for sea water electrolysis

Product Details:
Place of Origin: China
Brand Name: Geemblue
Model Number: EC-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 5000~10000 usd
Packaging Details: Wooden Case

Detail Information

Base Metal: TA1 Titanium Input Voltage: 10~25V
Electrolyte: Brine/sea Water PH Level: 1~14
Capacity: 500g/h Coating: Ru-Ir-Pt
Content Of Noble Metal: 10g/m2-100g/m2 Life Time: 2~5years

Product Description

Product Description:

The sodium hypochlorite electrolytic cell is a device used to make sodium hypochlorite, part of many water treatment plans. This system requires no membrane and works by electrolyzing, or breaking down, a low-concentration sodium chloride solution. It is suitable for sodium hypochlorite generators, water treatment equipment, and electrolytic disinfection equipment.

The process works by breaking down sodium chloride through several different reactions:

  • Overall reaction: NaCl+H2O→NaClO+H2↑
  • Anode reaction: 2Cl--2e→Cl2
  • Cathode reaction: 2H++2e→H2
  • Solution reaction: 2NaOH+Cl2→NaCl+NaClO+H2O

In this process, a small amount of hydrogen is created. However, due to a specific design that includes a push-type hydrogen discharge which rapidly redirects the hydrogen in the solution, the risk of hydrogen buildup is much lower.



Features:

To prepare a sodium hypochlorite solution of a certain concentration, there are certain requirements for the electrode type, electrolytic cell structure, current density, ambient temperature, etc. In the process of cooperating with customers, our company will determine the electrolytic cell structure. The structure of the electrode plate is continuously optimized, and the characteristics of use are as follows:

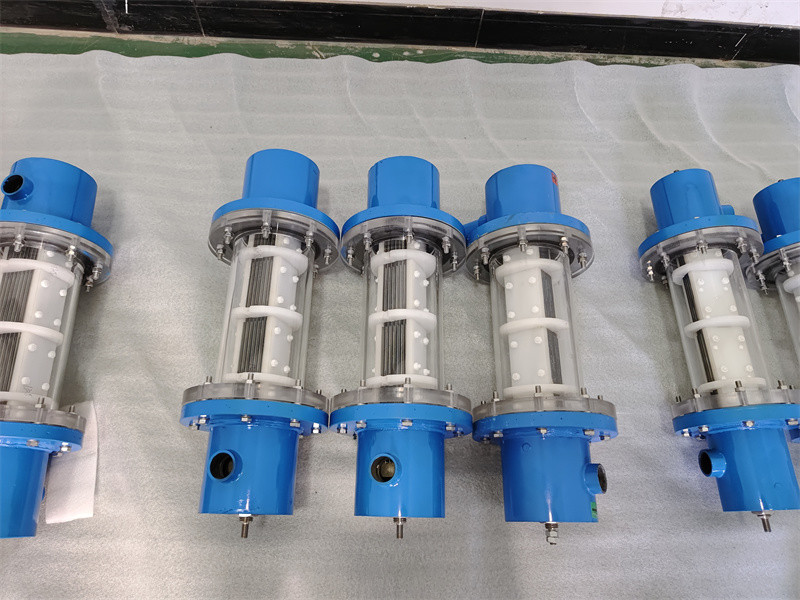

  • The tubular tank design has multiple built-in polar chambers. Each polar chamber has a compact structure, which enables the solution to be electrolyzed more fully. It can disperse the influence of stray currents during the electrolysis process, improve the electrolysis efficiency, and operate under certain temperature conditions and electrical tightness. Under the conditions, the electrolysis efficiency can reach more than 85%; the tank body, flange and water inlet and outlet are all made of thickened acrylic material, which is stronger, more transparent, and more integrated and beautiful than those on the market.
  • The design of the plate-type bipolar structure electrode group, with cooling holes and heat exchange packing rings on the electrode plate, provides a long electrolyte flow path. Under a suitable temperature environment, the effective chlorine concentration reaches more than 8500ppm; optimization The advanced electrode plate spacing and connection method reduce the impact of connectors on resistance, reduce salt consumption and power consumption, and reduce by-products such as chlorate, so that the effective chlorine output is stable;
  • Optimized electrode plate coating formula. The electrode group coating adopts our company’s optimized nano-scale refined grain ruthenium-iridium mixed oxide coating suitable for chlorine evolution environment, which has stronger corrosion resistance and longer service life. long;
  • Each batch of sodium chlorate electrode plates and tanks has production batch and material identification numbers, which can trace the use of each component. They can be replaced for free or paid during the warranty period. If the warranty period exceeds the warranty period, they will be returned to the factory for repair or replacement of accessories, aftersale service provided.


Technical Parameters:

Technical Parameter Description
Coating thickness 1~10 Um
PH level 1~14
Input voltage 10~25V
Electrolyte Brine/sea Water
Production Sodium Hypochlorite
Content of noble metal 10g/m2-100g/m2
Input current 1~150A
Base metal TA1 Titanium
Coating Ru-Ir-Pt
Life time 2~5years


Applications:

Application Scope

The application scope of sodium hypochlorite disinfection solution produced and prepared in our company is as follows:

1. Production and preparation of sodium hypochlorite disinfection solution;

2. Industrial wastewater treatment;

3. Tap water treatment;

4. Municipal sewage treatment;

5. Breeding and livestock disinfection treatment;

6. Other occasions requiring disinfection.



Customization:

Titanium Electrode Products Custom Services

Geemblue offers custom services for Titanium Electrode Products, with model number EC-500. The products are produced in China with Sodium Hypochlorite, and can work in a temperature range of 0-60℃. They can also be tailored to your needs in terms of appearance and PH levels, from 1-14. Our advanced Nano Coating technology ensures optimal performance in electrolytic cells and electrochemical reaction.



Support and Services:

Titanium Electrode Products Technical Support and Service

We provide technical support and service for our Titanium Electrode Products. Our technical support staff can assist you with troubleshooting, product installation, and product customization. We also provide product training and educational materials to help you get the most out of your Titanium Electrode Products.

If you have any questions or need help with our Titanium Electrode Products, please contact us at support@titaniumelectrodeproducts.com or by phone at 1-800-555-1234.



Packing and Shipping:

Packaging and Shipping of Titanium Electrode Products

Titanium Electrode Products are packaged and shipped in accordance with the following standards:

  • The product is securely wrapped in protective material
  • The product is placed in a sturdy cardboard box
  • The box is sealed with strong tape to protect the contents from damage during transportation
  • The package is labeled with the customer's name, address, and contact information
  • The package is shipped via a reputable delivery service such as UPS, FedEx, or DHL
