High Efficiency Sodium Hypochlorite Generation System With 3125L/H Flow

Product Details:
Place of Origin: CHINA
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GBS-25K-NACLO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: NEGOTIATION
Packaging Details: wooden case
Delivery Time: 40-45 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SET/MONTH

Detail Information

Capacity Chlorine Output: 25 Kg/L Thickness Of Electrodes: 2mm
Flow: 3125 L/h Raw Material: Water And Salt
Rated Current: According To The Specific Choice Model Electrolytic Liquid: 2.5% - 3% Dilute Brine
Content Available CL: 7000 – 9000 Ppm NACLO Concentration: 0.8%
High Light:

sodium hypochlorite equipment

,

sea water generator

Product Description

Electrodialysis System Sodium Hypochlorite Equipment Chlorinator With 3125 L/h Flow





Brief Introduction



Sodium hypochlorite generator is producing sodium hypochlorite by brine electrolysis, and the whole system is a combination of salt dissolving unit, brine proportioning unit, electrolytic unit, rectifier power supply, automatic control systems, storage and dosing unit, etc. The sodium hypochlorite is a strong oxidant, has strong ability to kill algae, bacteria and other contaminants, make indicators of water bacterial colony meet the criteria.



The operation of the Geemblue system is simple:


1. Salt Dissolving

Influent water passes through a water softener to reduce hardness therefore reducing the scaling of electrodes. Using softened water to dissolve the salt in a tank to form a concentrated brine solution.


2. Brine Proportioning

The saturated brine will be diluted into 2.5%-3%, the diluted brine can be adjusted and real-time monitored according to the value conductivity meter



3. Brine electrolysis

The diluted brine solution is passed through an electrolytic cell that, using DC current from a rectifier, electrolyzes the diluted brine into a 0.8% solution of sodium hypochlorite


4. Sodium hypochlorite solution storage

The final product 5000-7000 ppm (adjustable) of sodium hypochlorite solution will be kept in the storage tank and the hydrogen will be blown out to the air



5. Dosing

The sodium hypochlorite solution will be delivered into the water by dosing pump and the dosing rate of dosing pump can be adjusted by the feedback data of residual chlorine meter and PLC



Applications:



♪ Potable water treatment for drinking purpose

♪ Cooling water treatment algae control

♪ Waste water treatment

♪ Effluent control including treatment of sewage.

♪ Swimming pool chlorination.

♪ Open well water treatment

♪ Hospital disinfection and hygiene maintenance

♪ Hospital waste management.

♪ Sterilizer for food processing in Hotel and Restaurants.

♪ Meat and Poultry processing facilities disinfection.

♪ Sterilizer for food consumable and perishable Packing Plants.

♪ Public places disinfection

♪ Public health water treatment to control micro-organisms, destroy hydrogen sulphide (rotten egg odour), colour algae growth and keeps transmission pipes clean.

♪ Laundry and bleaching.

♪ General purpose domestic bleach and disinfectant.

♪ Poultry water disinfection.

♪ General farm sanitation, odour control.

♪ Dairy equipment sterilization

♪ Manufacture of oxidized starch.

♪ Bleaching of textiles, paper shellac, carpets, alginates.

♪ Fisheries.



Comparison between chlorine gas and electro chlorination system (EC system)



Analysis Chlorine gas EC system
  Raw materials Industrial salt Salt + water or sea water
Easy to buy Easy to buy
Storage
and
dosing
Storage Pressure cylinder PE plastic tank
Dosing equipment Vacuum chlorine dosing machine Pump
Dosing accuracy low hydrolysis rate, inaccurate dosing high accurate
Status Chlorine concentration 95% 0.5-0.8%
Status strong irritant gas, a highly toxic, explosive and leakage risk Stable low concentration liquid
Disinfection Byproducts easily exceeded of Chlorate or chlorite, leading to contamination of the water quality Highly safe disinfectant
Smell on water Strong chlorine smell No smell
Cautions Leakage prevention measures Must be strictly set chlorine leak absorption device No special protective measures
water to flush and dilute when leakage.
Leak harmful levels Gaseous state, once the leak is easy to large-scale diffusion, causing serious social harm consequences Liquid with low concentration, easy dilute and flush into the sewage pipes.
Maintenance Operation and Maintenance Professional training course No special requirements
Equipment costs Medium High
Operation and maintenance costs Medium Low

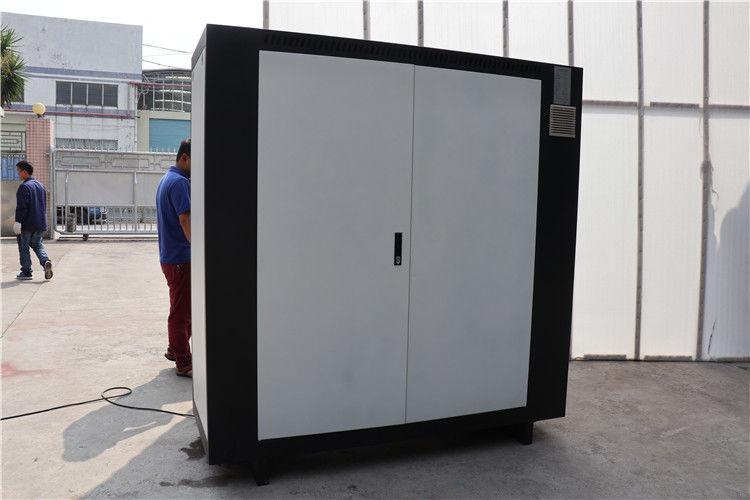

High Efficiency Sodium Hypochlorite Generation System With 3125L/H Flow 0



High Efficiency Sodium Hypochlorite Generation System With 3125L/H Flow 1
