China Sodium Hypochlorite Generator manufacturer

10kg/h Brine Electrolysis Sodium Hypochlorite Generator

Product Details:
Place of Origin: China
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GBS-10K-NACLO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: NEGOTIATION
Packaging Details: wooden case
Delivery Time: 55~65 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 SET/MONTH

Detail Information

Capaccity: 10kg/h Output Flow: 1250L/h
Control: PLC Control/full Automatic Chlorine Concentration: 8000ppm
Additive: Salt Salt Consumption: 3kg/kg Cl2
Power Consumption: 4kw/kg Cl2 Application: Water Treatment

Product Description

10kg/h Brine Electrolysis Sodium Hypochlorite Generator



Geemblue’s Sodium Hypo Generator offers several significant advantages for water treatment facilities:

  1. Minimal Maintenance Requirements: The 0.8% sodium hypochlorite solution produced requires minimal cleaning and maintenance of injection nozzles due to its non-aggressive and low-mineral content.

  2. Stability and Longevity: Unlike conventional sodium hypochlorite solutions, Geemblue’s solution remains stable over months without additives, ensuring consistent chlorine levels for effective disinfection.

  3. Safety and Operational Efficiency: Produced onsite, the system reduces risks associated with storage and handling, enhancing safety for operational personnel and minimizing the chances of accidental spillage.

  4. Raw Materials: Uses salt or seawater for electrolysis, which are safe and easy to transport and store, with no volatility or toxicity concerns.

  5. Efficiency Standards: Meets or exceeds national standards for salt and power consumption, ensuring cost-effective operation.

  6. Control System: Equipped with Siemens PLC and touch screen for automatic control, ensuring precision and ease of use.

  7. Longevity of Components: Critical components such as the cathode and machine itself have extended lifespans, reducing maintenance costs and downtime.

Overall, these features make Geemblue’s Sodium Hypo Generator a robust choice for water treatment facilities seeking efficient, safe, and sustainable disinfection solutions.

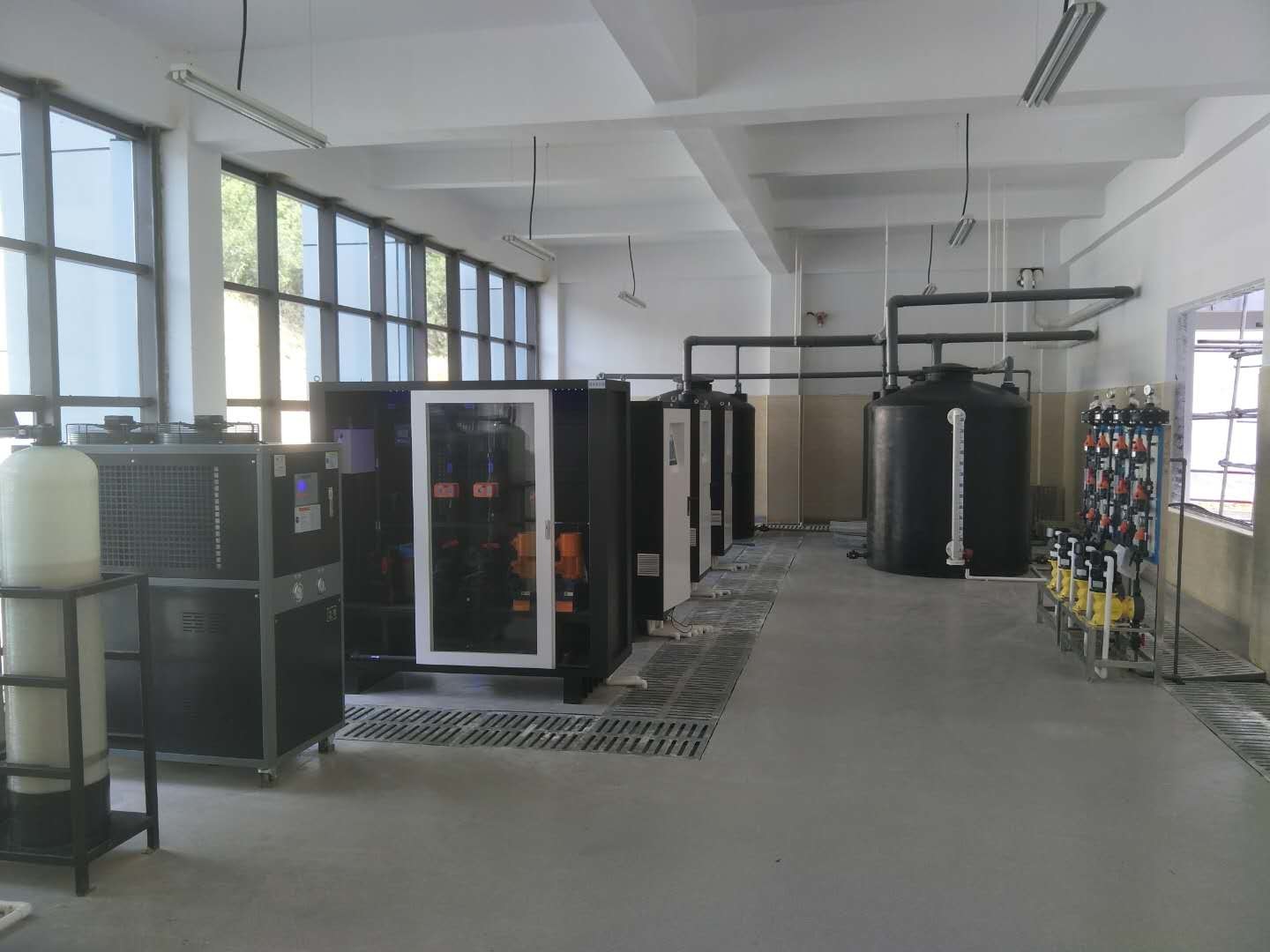

Project Reference

Model GBA-10K-NACLO
Dimension of Host Machine 2000*1200*2050mm
Available chlorine 10kg/h
NaClO Output flow 1250L/h
NaClO concentration 8000ppm
Power supply 60kw
Voltage 380V/50hz three phase
Feed brine concentration 2.5~3%
Feed Salt requirement 99.3% food grade salt
Feed water flow 1250L/h
Feed water requirement tap water
Salt Consumption 3.5kg/kg Cl2
AC Power consumption 4kw/kg Cl2
Cell arrangement Horizontal
H2 production amount 0.35m3/kg Cl2
Number of Cell6 pcs
Operation pressure 2~4bar
Feed water temperature 15~25℃
Dosing system Optional
Residual chlorine analyser Optional
Heating/Cooling device Optional
Operation mode Full automatic control, real-time display parameters of the system and running status of each component
Detection Unit Voltage/current detection, Temperature detection, conductivity detection, pressure detection, H8 detection, Component status detection
Cleaning mode Acid washing





10kg/h Brine Electrolysis Sodium Hypochlorite Generator 0
