China Sodium Hypochlorite Generator manufacturer

Waste Water Treatment Electro Chlorination System

Product Details:
Place of Origin: China
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GBS-30K-NACLO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: NEGOTIATION
Packaging Details: wooden case
Delivery Time: 55~65 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 SET/MONTH

Detail Information

Capaccity: 30kg/h Output Flow: 3750L/h
Control: PLC Control/full Automatic Chlorine Concentration: 8000ppm
Additive: Salt Salt Consumption: 3kg/hr Per Cl2
Power Consumption: 4kw/hr Per Cl2 Application: Waste Water Treatment
High Light:

Waste Water Treatment Electro Chlorination System

,

Electro Chlorination System

,

Waste Water Treatment Electro Chlorination System

Product Description

Waste Water Treatment Electro Chlorination System





Geemblue Electro Chlorination Systems:

Geemblue’s Electro Chlorination systems utilize electrolysis to generate sodium hypochlorite from brine, resulting in a solution with a concentration of 0.8%. This low-concentration sodium hypochlorite offers several distinct advantages:

  1. Minimal Maintenance Requirements:
    The 0.8% sodium hypochlorite solution produced by Geemblue is non-aggressive and low in minerals. This characteristic eliminates the need for extensive cleaning and de-scaling of injection nozzles, streamlining operational maintenance.

  2. Stability and Longevity:
    Unlike conventional sodium hypochlorite solutions that can lose up to 20% of their chlorine content during storage, Geemblue’s solution remains stable over months without requiring additives. This stability ensures consistent chlorine levels for effective disinfection.

  3. Safety and Operational Efficiency:
    Produced in close proximity to the process, the direct storage and dosing of sodium hypochlorite by Geemblue systems minimize the risk of accidental spillage and exposure to operating personnel, enhancing overall safety protocols.

Main Features:

  1. Raw Materials: Utilizes only salt or seawater, which are safe and convenient for transportation and storage, without volatility or toxicity concerns.

  2. Electrode Connection: Employs a bipolar electrode connection mode, minimizing heat generation and reducing sodium hypochlorite salt and power consumption.

  3. Efficiency Standards:

    • Salt consumption < 3.5kg / kg Cl2 (National standard 4.5)
    • AC Power consumption < 4kw / kg Cl2 (National standard 5)
  4. Control System: Equipped with Siemens PLC and touch screen for full automatic control, ensuring operational precision and ease of use.

  5. Longevity: Extended lifespan of critical components:

    • Cathode life > 20 years
    • Machine life > 15 years

These features collectively make sodium hypochlorite disinfection a robust choice for water treatment facilities seeking effective, safe, and sustainable disinfection solutions.





Project Reference

Model GBA-30K-NACLO
Dimension of Host Machine 2400*1200*2050mm
Available chlorine 30kg/h
NaClO Output flow 3750L/h
NaClO concentration 8000ppm
Power supply 180kw
Voltage 380V/50hz three phase
Feed brine concentration 2.5~3%
Feed Salt requirement 99.3% food grade salt
Feed water flow 3750L/h
Feed water requirement tap water
Salt Consumption 3.5kg/kg Cl2
AC Power consumption 5kw/kg Cl2
Cell arrangement Horizontal
H2 production amount 0.35m3/kg Cl2
Number of Cell6 pcs
Operation pressure 2~4bar
Feed water temperature 15~25℃
Dosing system Optional
Residual chlorine analyser Optional
Heating/Cooling device Optional
Operation mode Full automatic control, real-time display parameters of the system and running status of each component
Detection Unit Voltage/current detection, Temperature detection, conductivity detection, pressure detection, H8 detection, Component status detection
Cleaning mode Acid washing

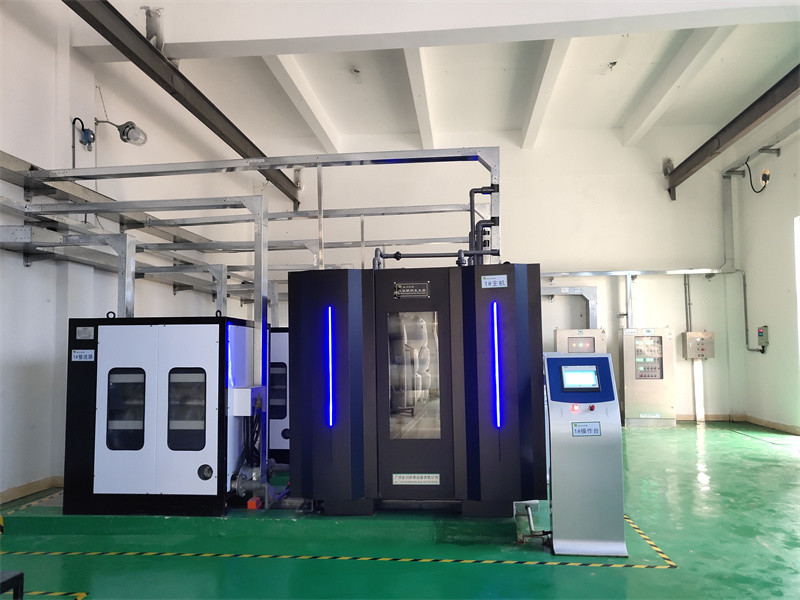

Waste Water Treatment Electro Chlorination System 0
