|Place of Origin:||China|
|Certification:||CE, ISO 9001, ATEX|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden case|
|Delivery Time:||35~45 work days|
|Supply Ability:||100 set per month|
|Chlorine Capacity:||100g/h||Output Flow:||20L/h|
|Concentration:||5000~7000ppm||Water Requirement:||Tap Water|
|Salt Consumption:||3.5kg/kg Cl2||Sat Concentration:||2.5~3%|
|Power Supply:||220V/50hz 1 Phase||Additive:||Salt|
|Washing Mode:||Polarity Reverse|

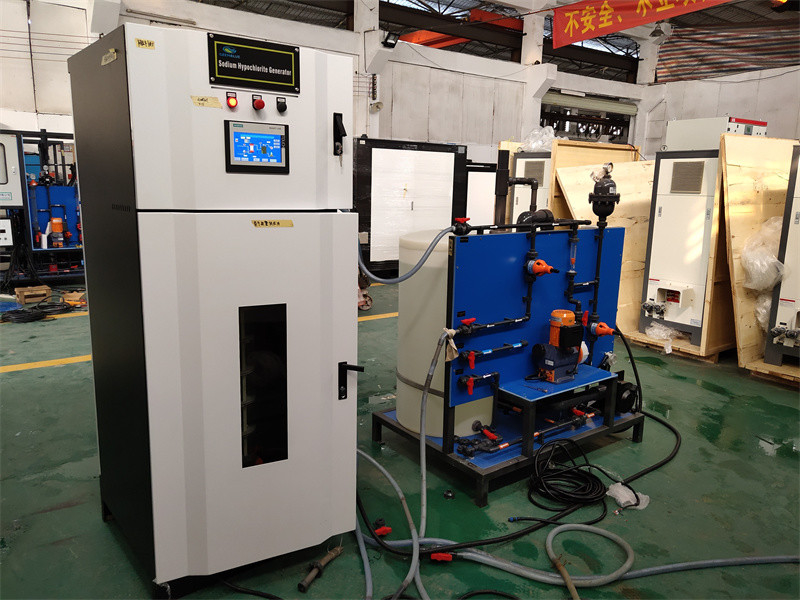

Cl2 Sodium Hypochlorite Generator,
Sodium Hypochlorite Generator 7000ppm
Sodium hypochlorite turn into hypochlorous acid by hydrolysis in water, and turn into nascent oxygen [O] in further step, which having ultra strong oxidation to effect the protein of thalli and virus, and terminate pathogenic microorganisms. Besides that, during the reaction of hypochlorous acid, it’s not only having effects on cell wall and viral coat, but due to its small volume and no electrical charge, it’s also permeate into germ or virus generate oxidation reaction with the organic polymer like protein, nucleic acid and enzyme, and thus to kill pathogenic microbes. What’s more, the chlorine ion generated by hypochlorous acid will change the osmotic pressure significantly, cause death of cell by lost of activity.
Fully Automated Operation: A PLC-based control system provides fully automatic operation of the entire process and monitors key variables to ensure reliable operation of the system. Safety features such as run inhibit during a descaling process, and tank overfill protection are some of the many inherently safe interlocks built into the process controls. The control panel includes a touch-screen human-machine interface (HMI) to provide user-friendly access to operators.
Robust Single-Electrolyzer Design: Geemblue sodium hypochlorite generator unique electrolyzer design optimizes salt and power consumption while providing easy access to the cell components for maintenance. A clear cast acrylic casing allows for visual inspection, and the improved end-connection cap design minimizes the potential for leaks. The electrolyzer is arranged horizontally for flow optimization; increasing residence time and heat transfer in each cell pass and minimizing hydrogen bubble size. The result is maximum process efficiency while yielding the highest quality hypochlorite solution.
Ease of installation and maintenance: Installation Flexibility: Geemblue sodium hypochlorite generator is perfect for retrofit applications or installation in existing buildings since it can pass through a standard doorway. The floor-mounted transformer/rectifier cabinet on 3.75 kg/h and 5.00 kg/h (195 lb/day and 260 lb/day) is typically installed adjacent to the generator to minimize the length of interconnecting power cables.
Plug-and-Play Convenience: The electrolyzer system is shipped pre-assembled, pre-wired, and tested to verify hypochlorite production. Once the system is on site the electricity supply, brine solution and process water connections have to be connected to the skid. The common outlet pipe for hypochlorite and hydrogen solution is piped to the hypochlorite storage tank. For these works, the correct installation and regular maintenance, we recommend our specially trained technicians.
Less Maintenance, Reduced Downtime: All serviceable components are strategically arranged on the skid as to facilitate quick access by maintenance personnel. The process water and brine management subassembly is panel mounted on the skid. The electrolyzer is situated on the frame so that it may be accessed by the operator while standing upright. Flexible hydraulic hose and electrical cables to the electrolyzer make for easy connections and adjustment if needed. Piping and electrical connections are provided for the acid-cleaning system.
Chlorination of potable water supplies
Food washing / processing treatment
Dairies / Breweries cleaning in place (CIP)
Cooling tower biocide treatment
Industrial chlorination treatments
Swimming & Spa pool disinfection
Influent water passes through a water softener to reduce hardness and thus prevent scaling of electrodes and elongate the cleaning duration.
Salt is then dissolved by the softened water that fills the tank, leading to a saturated brine. This brine is subsequently diluted into a 2.5%-3% solution before being passed into the electrolytic cell. Finally, it is electrolyzed into a 0.8% sodium hypochlorite solution that is transported to a storage tank. The only byproduct of the process is hydrogen, which is vented into the atmosphere in a safe manner.
Precision liquid delivery is regulated and monitored through a residual chlorine analyser and PLC.
Brand Name: Geemblue
Model Number: GTL-1000
Place of Origin: China
Certification: CE, ISO9001
Minimum Order Quantity: 1
Packaging Details: Wooden case
Product Name: Sodium Hypochlorite Generator
Sat concentration: 2.5~3%
Power Supply: 380V/60hz 3 Phase
Geemblue GTL-1000 Sodium Hypochlorite Generator is a sodium hypochlorite machine, also known as NaOCl generator or electro chlorination system. It boasts high-end features and a capacity of 1kg/h, and is certified with CE and ISO9001.
Sodium hypochlorite generators must be shipped with extreme care. The generator must be properly packaged with protective material to ensure it is not damaged during transport. The generator should also be shipped in an appropriate container with proper labeling. It should also include a safety data sheet to provide any necessary information about the product.
Prior to shipping, it is important to check with the shipping company to ensure that the generator is compatible with their shipping regulations. It is also important to ensure that the package is properly sealed and labeled with any necessary warnings. Finally, it is important to provide a tracking number to ensure the shipment can be monitored.
