|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Price:||USD 10500-13500 / set|
|Packaging Details:||wooden case|
|Delivery Time:||40-45 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10 set / month|
|Concentration Of NaClO:||0.5 - 0.7 %||Voltage:||220V/50Hz|
|Electrolyte Solution:||2.5% - 3% Dilute Saline Water||Energy Consumption:||4kWh (per Kg Active Chlorine)|
|Conversion Of Salt:||3.5kg/ Kg Cl2||Available Chlorine Output:||100 G / H|
sodium hypochlorite equipment,
sodium hypochlorite generation system

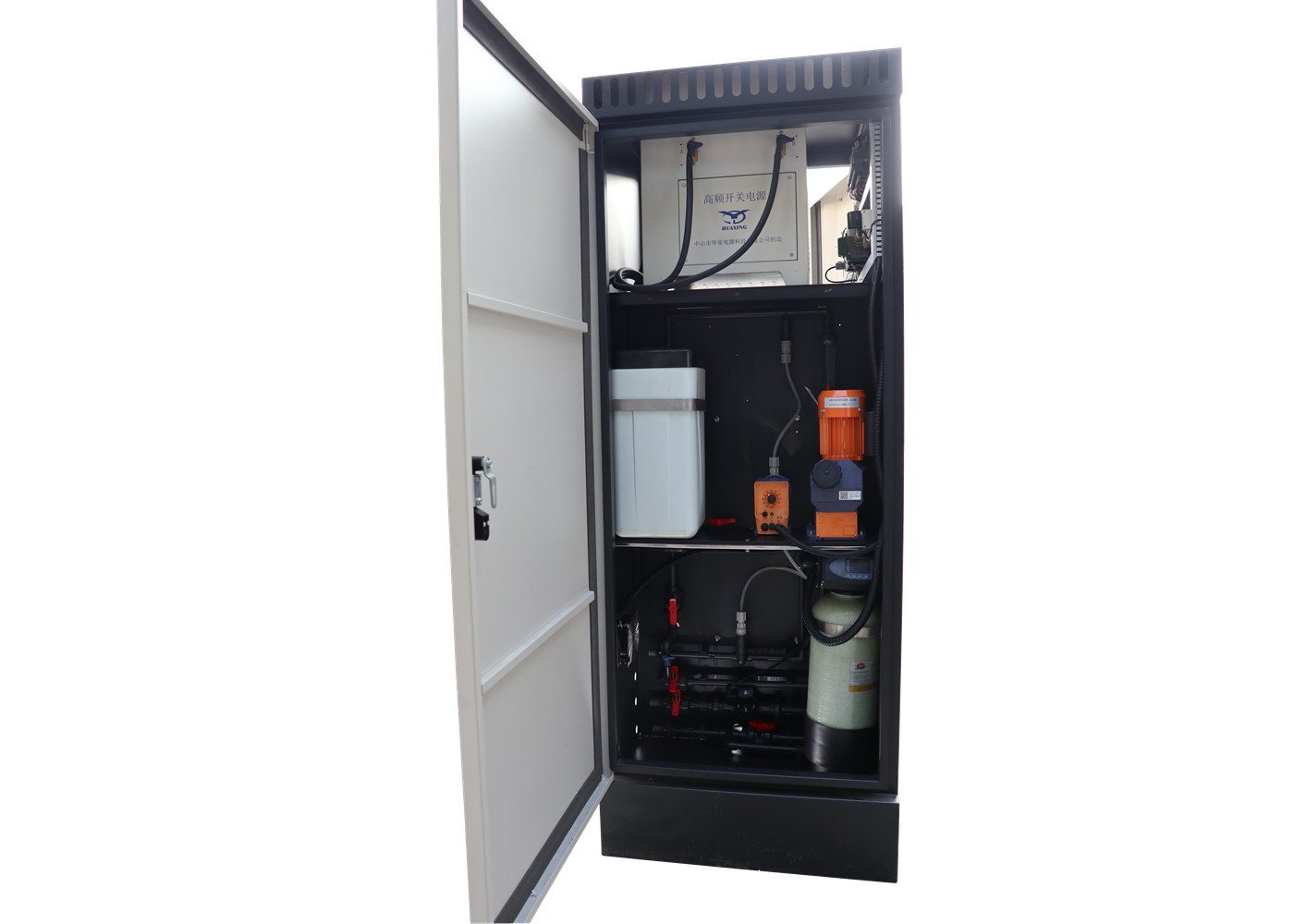

220V 50Hz Sodium Hypochlorite Generator with 0.5 - 0.7 % Concentration of NaClO
Sodium hypochlorite generator summary
1. Sodium hypochlorite generation
Sodium hypochlorite generation system is producing sodium hypochlorite through brine electrolysis, and the whole system is a combination of Softening unit, Filtration unit, Salt dissolving unit, Online proportioning unit, electrolytic unit, rectifier power supply, automatic control systems, storage and dosing unit, etc.
2. The Applications of sodium hypochlorite disinfection
Sodium hypochlorite, a strong oxidant with strong bactericidal and bleaching power, have been widely used in drinking water disinfection, food processing, industrial or power system recycling water disinfection, sewage treatment and swimming pool water treatment.
Principle of sodium hypochlorite generator
Salt solution contains the several kinds of ions such as Na +, H -, when electrolysis, under a certain voltage, as a result of the movement of ions in the electrolyte solution and electrode reaction, the conductive effect occurs, then CL -, OH - such as negative ion to the anode, and positive ions such as Na +, H + to the cathode, and the corresponding electrode discharge occurs, thus carries on the REDOX reaction, the corresponding material production. The electrode reaction and solution reactions is
anode: 2Cl- - 2e → Cl2；
cathode: 2H+ + 2e → H2；
2NaOH + Cl2 → NaCl + NaClO + H2O
Overall reaction as follow:
Na Cl + H2O + DC →NaClO + H2↑
♪ Potable water treatment for drinking purpose
♪ Cooling water treatment algae control
♪ Waste water treatment
♪ Effluent control including treatment of sewage.
♪ Swimming pool chlorination.
♪ Open well water treatment
♪ Hospital disinfection and hygiene maintenance
♪ Hospital waste management.
♪ Sterilizer for food processing in Hotel and Restaurants.
♪ Meat and Poultry processing facilities disinfection.
♪ Sterilizer for food consumable and perishable Packing Plants.
♪ Public places disinfection
♪ Public health water treatment to control micro-organisms, destroy hydrogen sulphide (rotten egg odour), colour algae growth and keeps transmission pipes clean.
♪ Laundry and bleaching.
♪ General purpose domestic bleach and disinfectant.
♪ Poultry water disinfection.
♪ General farm sanitation, odour control.
♪ Dairy equipment sterilization
♪ Manufacture of oxidized starch.
♪ Bleaching of textiles, paper shellac, carpets, alginates.
|Model||chlorine capacity||Water treatment capacity||concentration||flow rate||salt conversion||energy conversion|
|GBI-50-NACLO||50 g / h||1000 ton / day||5000~7000 ppm||10 L / h||3.5 kg / kg Cl2||4 kwh / kg Cl2|
|GBI-100-NACLO||100 g / h||2000 ton / day||5000~7000 ppm||20 L / h||3.5 kg / kg Cl2||4 kwh / kg Cl2|
|GBI-200-NACLO||200 g / h||4000 ton / day||5000~7000 ppm||40 L / h||3.5 kg / kg Cl2||4 kwh / kg Cl2|
|GBI-300-NACLO||300 g / h||6000 ton / day||5000~7000 ppm||60 L / h||3.5 kg / kg Cl2||4 kwh / kg Cl2|
|GBI-400-NACLO||400 g / h||8000 ton / day||5000~7000 ppm||80 L / h||3.5 kg / kg Cl2||4 kwh / kg Cl2|
