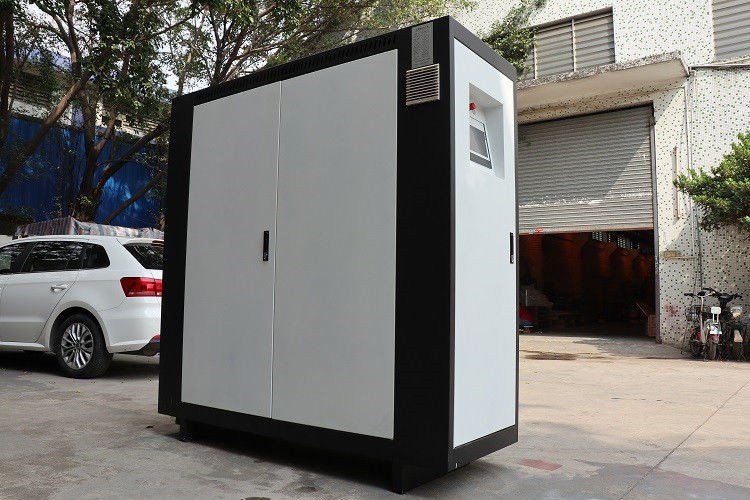

Full Automatic Sodium Hypochlorite Equipment 40kg/h With 0.8% Concentration

Product Details:
Place of Origin: CHINA
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GBS-40K-NACLO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: NEGOTIATION
Packaging Details: wooden case
Delivery Time: 40-45 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SET/MONTH

Detail Information

Sodium Hypochlorite Concentration: 0.8% Chlorine Output: 40 KG/H
Power Conversion: 4 Kwh / Kg Cl2 Salt Consumption: 3.5 Kg / Kg Cl2
Input Power: 380V, 50Hz Inlet Water Pressure: 0.2-0.4Mpa
Inlet Water Temperature: 5-27℃ Rated Current: Determined According To The Selected Product Model
High Light:

sodium hypochlorite equipment

,

sodium hypochlorite generation system

Product Description

Full Automatic 40 kg / H Sodium Hypochlorite Equipment With 0.8% Concentration





Product introduce:



Sodium hypochlorite generator is a generator to produce sodium hypochlorite by brine or sea water electrolysis, and the whole system is a combination of softener, salt dissolving unit, brine proportion unit, control system, electrolytic unit, storage unit, dosing unit and acid washing unit. It's a system using salt as raw material to produce sodium hypochlorite liquid (0.8%) and dose into water for disinfection.



Main Features


1) The only raw material: salt or sea water which is safety and convenient for transportation and storage, without any volatility and toxicity.
2) Bipolar electrode connection mode, reduced the heat yield, as well greatly reduced the production of sodium hypochlorite salt consumption and power consumption
3) Salt consumption< 3.5kg / kg Cl2 (National standard 4.5); power consumption < 4kw /kg Cl2 (National standard 4.5)
4) Siemens PLC and touch screen, full automatic control

5) Cathode life >20 years; Machine life >15 years



Product components



Electrolytic cell
Geemblue series unique electrolytic cell design optimizes salt and power consumption while providing easy access to the cell components for maintenance. A clear organic glass cell body allows for visual inspection, and the improved end-connection cap design minimizes the potential for leaks.



Electrode

TA1 pure titanium electrode, with ruthenium &iridium oxide coating which ensure over 5 years coating life, over 18 years base material, reduce the chlorine evolution potential and electricity consumption.



Brine Proportioning Unit

To proportioning saturated brine with softened water into 2.5~3% diluted brine.

All we selected are international brand like “MILTONROY / PROMINENT / SEKO / GRUNDFOS” Pumps which ensure stable performance and long service life.



Siemens PLC Smart Control Center

Auto Dissolving & Proportioning Automatic dissolving salt into saturated brine and proportioning into 2.5~3%
Auto Electrolysis Automatic control electrolysis and produce accurate amount and concentration of sodium hypochlorite solution
Auto control storage The Start/off of system can be controlled by PLC according to the solution level in storage tank
Auto dosing Auto adjust dosing pump accurately according to the water flow and value of residual chlorine meter
Real-time Monitoring All running data(current, voltage, temperature, conductivity, solution level, hydrogen concentration) can be real-time monitored from LCD touch screen



Specifications:



Model FAC capacity Water treatment capacity Salt consumption Power consumption FAC concentration Dimensions
GBS-20K-NACLO 20 kg / h 400000 ton / day 3.5 kg / kg Cl2 4 kwh / kg Cl2 7000~9000 ppm 2000*800*1600 mm
GBS-25K-NACLO 25 kg / h 500000 ton / day 3.5 kg / kg Cl2 4 kwh / kg Cl2 7000~9000 ppm 2000*800*1600 mm
GBS-30K-NACLO 30 kg / h 600000 ton / day 3.5 kg / kg Cl2 4 kwh / kg Cl2 7000~9000 ppm 2000*800*1600 mm
GBS-40K-NACLO 40 kg / h 800000 ton / day 3.5 kg / kg Cl2 4 kwh / kg Cl2 7000~9000 ppm 2000*800*1600 mm
