220V 50HZ Swimming Pool Sodium Hypochlorite Generator with Low Salt Consumption

Product Details:
Place of Origin: China
Brand Name: Geemblue
Certification: ISO9001, CE
Model Number: GBA-200-NACLO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 8000 ~ 10000 / set
Packaging Details: wooden case
Delivery Time: 50 works day
Supply Ability: 30 set / month

Detail Information

Rated FAC Capcity: 200 G / H Water Treatment Capacity: 4000 Ton / Day
FAC Concentration: 5000~7000 Ppm Salt Conversion: 3.5 Kg / Kg Cl2
Energy Conversion: 4 Kwh / Kg Cl2 Dimensions: 1200*920*1350 Mm(L*W*H)
High Light:

sodium hypochlorite equipment


sodium hypochlorite generation system

Product Description

220V 50HZ Swimming Pool Sodium Hypochlorite Generator with Low Salt Consumption



Brief Introduction


It is a proven technology to convert ordinary salt (common salt) or sea water, by means of electrolysis into sodium hypochlorite (ELECTRO HYPO) using GEEMBLUE sodium hypochlorite generators ( electro chlorinator system). It is always applied on-site, at the point of application. No chemicals other than ordinary salt are used throughout the process.


The electrolytic cell is fed a DC current from the rectifier and electrolyzes the diluted brine into sodium hypochlorite solution. Chlorine evolves at the anode surface, while hydrogen and hydroxide evolves at the cathode surface. The secondary reaction of chlorine, sodium and the hydroxyl ion nets sodium hypochlorite (chlorine bleach) at a 0.8% solution. Below 1%, hypo is classified as a non-hazardous chemical although still a very effective disinfectant. The only by-product, hydrogen, is safely vented into the atmosphere.

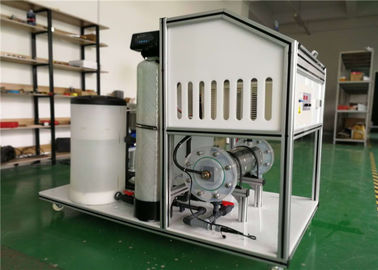

220V 50HZ Swimming Pool  Sodium Hypochlorite Generator with Low Salt Consumption 0






Model FAC capacity Water treatment capacity Salt consumption Power consumption FAC concentration Dimensions
GBA-200-NACLO 200 g / h 4000 ton / day 3.5 kg / kg Cl2 4 kwh / kg Cl2 5000~7000 ppm 1200*920*1350 mm(L*W*H)




System Flow Chart


① Influent water passes through a water softener to reduce hardness therefore reducing the scaling of electrodes and lengthening the cleaning time
② Salt is dissolved by softened water into saturated brine in the tank.
③ The saturated brine will be diluted into 2.5%-3%, then pass through the electrolytic cell and finally be electrolyzed into 0.8% solution of sodium hypochlorite.
④ The 0.8% hypochlorite solution flows into a storage tank. Hydrogen, the only byproduct of the process, is safely vented to the atmosphere.
⑤ Accuracy liquid dosed and controlled by residual chlorine analyser




220V 50HZ Swimming Pool  Sodium Hypochlorite Generator with Low Salt Consumption 1




  • Potable water treatment for drinking purpose
  • Cooling water treatment algae control
  • Waste water treatment
  • Effluent control including treatment of sewage.
  • Swimming pool chlorination.
  • Open well water treatment
  • Hospital disinfection and hygiene maintenance
  • Hospital waste management.
  • Sterilizer for food processing in Hotel and Restaurants.
  • Meat and Poultry processing facilities disinfection.
  • Sterilizer for food consumable and perishable Packing Plants.
  • Public places disinfection
  • Public health water treatment to control micro-organisms, destroy hydrogen sulphide (rotten egg odour), colour algae growth and keeps transmission pipes clean.
  • Laundry and bleaching.
  • General purpose domestic bleach and disinfectant.
  • Poultry water disinfection.
  • General farm sanitation, odour control.
  • Dairy equipment sterilization
  • Manufacture of oxidized starch.
  • Bleaching of textiles, paper shellac, carpets, alginates.
  • Fisheries.
