80L/H Sodium Hypochlorite Generator , Saltwater Chlorine Generator With PLC Control

Product Details:
Place of Origin: CHINA
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GBI-400-NACLO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000 ~ 20000 / set
Packaging Details: wooden case
Delivery Time: 40-45 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 set / month

Detail Information

Chlorine Production: 400 G/h Power Input: 220V, 50Hz
Electrolytic Liquid: 2.5% - 3% Dilute Brine Electrolyte Flow: 80 L / H
Salt Consumption: 3kg (per Kg Active Chlorine) Consumption Of Power: 4kw/ Kg Chlorine
Concentration: 0.5~0.7 % (5000~7000ppm) Running Method: Fully Automatic/PLC Control
High Light:

sodium hypochlorite equipment

,

sodium hypochlorite generation system

Product Description

400 G / H Sodium Hypochlorite Water Treatment Machine With PLC control





Principle:



Electrochlorination uses electricity to convert SALT + WATER (brine) into a mixed oxidant solution of sodium hypochlorite and hydrogen peroxide.

Evenly spaced titanium electrodes are placed in a 3% brine solution (NaCl + H2O). When a DC current is applied to the electrodes the brine acts as a conductor between the positive and negative poles. The resulting electrochemical reactions convert the brine into the sodium hypochlorite based mixed oxidant solution. The electrode reaction and solution reactions is

Electrode reaction:

at the anode: 2Cl- - 2e → Cl2;
at the cathode: 2H+ + 2e → H2
Solution reaction:

2NaOH + Cl2 → NaCl + NaClO + H2O

Overall reaction as follow:

NaCl + H2O + DC →NaClO + H2

The electrode reaction and solution reactions is

Electrode reaction:

at the anode: 2Cl- - 2e → Cl2;
at the cathode: 2H+ + 2e → H2
Solution reaction:

2NaOH + Cl2 → NaCl + NaClO + H2O

Overall reaction as follow:

NaCl + H2O + DC →NaClO + H2



The process of the sodium hypochlorite generator



The operation of the Geemblue system is simple:
1. Salt Dissolving

Influent water passes through a water softener to reduce hardness therefore reducing the scaling of electrodes. Using softened water to dissolve the salt in a tank to form a concentrated brine solution.
2. Brine Proportioning

The saturated brine will be diluted into 2.5%-3%, the diluted brine can be adjusted and real-time monitored according to the value conductivity meter

3. Brine electrolysis

The diluted brine solution is passed through an electrolytic cell that, using DC current from a rectifier, electrolyzes the diluted brine into a 0.8% solution of sodium hypochlorite
4. Sodium hypochlorite solution storage

The final product 5000-7000 ppm (adjustable) of sodium hypochlorite solution will be kept in the storage tank and the hydrogen will be blown out to the air

5. Dosing

The sodium hypochlorite solution will be delivered into the water by dosing pump and the dosing rate of dosing pump can be adjusted by the feedback data of residual chlorine meter and PLC



Main Features


1) The only raw material: salt or sea water which is safety and convenient for transportation and storage, without any volatility and toxicity.
2) Bipolar electrode connection mode, reduced the heat yield, as well greatly reduced the production of sodium hypochlorite salt consumption and power consumption
3) Salt consumption< 3.5kg / kg Cl2 (National standard 4.5); power consumption < 4kw /kg Cl2 (National standard 4.5)
4) Siemens PLC and touch screen, full automatic control

5) Cathode life >20 years; Machine life >15 years



Comparative advantages of chloridose



Disinfection system Source of raw materials Handling of product Self-life of product Operation & maintenance Cost of consumable
Chloride hypochlorite Only Edible salt No transportation & storage Easy handling Produced and dosed on site. No storage. No loss of chlorine Very Easy Very Economical
Chlorine gas Dependent on Supplier uneconomical for transport Transportation and Handling is hazardous Stable Difficult Most Economical
Bleaching powder Dependent on supplier Handling and storage is inconvenient messy Highly unstable Rapidly losses Chlorine on storage Inconvenient Difficult & Messy Expensive
Commercial sodium hypochlorite Dependent on supplier & Uneconomical for Transport Handling and storage is inconvenient Unstable & losses chlorine on storage Fairly Easy Most Expensive.

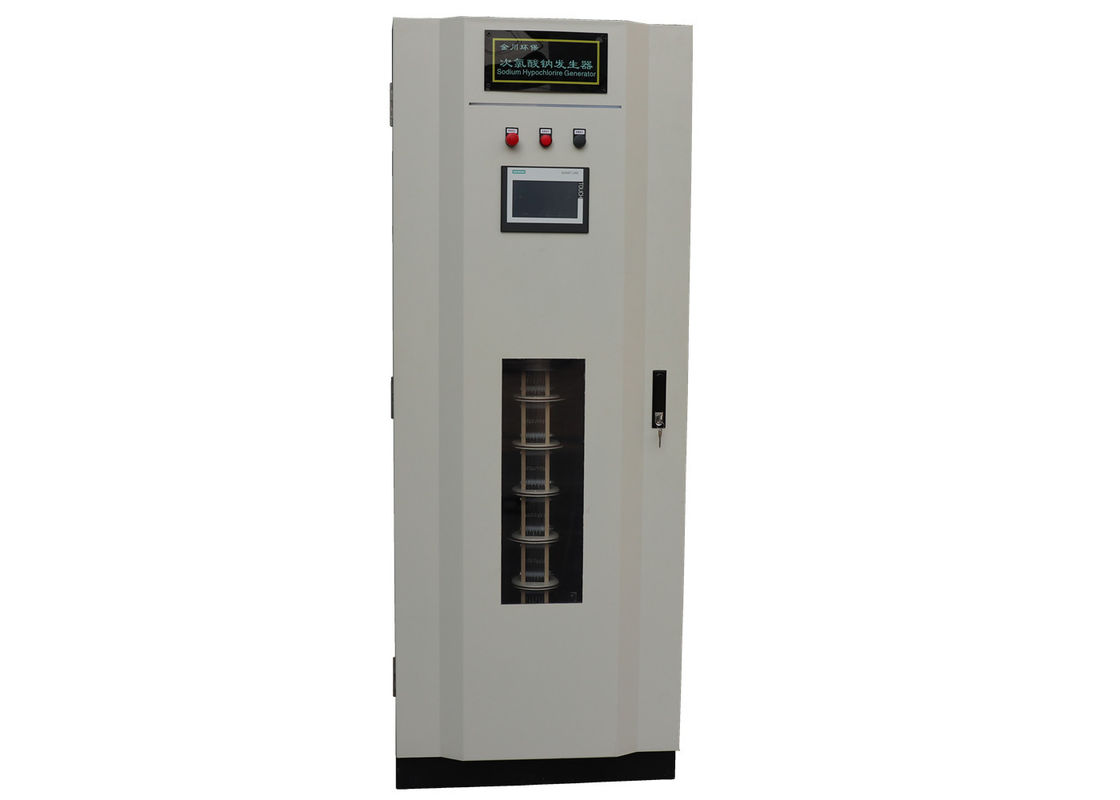

80L/H Sodium Hypochlorite Generator , Saltwater Chlorine Generator With PLC Control 0



80L/H Sodium Hypochlorite Generator , Saltwater Chlorine Generator With PLC Control 1



80L/H Sodium Hypochlorite Generator , Saltwater Chlorine Generator With PLC Control 2
