Sodium Hypochlorite Generator For Waste water treatment

Product Details:
Place of Origin: China
Brand Name: Geemblue
Certification: ISO9001 CE
Model Number: GBS-20K-NACLO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: NEGOTIATION
Packaging Details: wooden case
Delivery Time: 55~65 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 SET/MONTH

Detail Information

Capaccity: 20kg/h Output Flow: 2500L/h
Control: PLC Control/full Automatic Chlorine Concentration: 8000ppm
Additive: Salt Salt Consumption: 3kg/hr Per Cl2
Power Consumption: 4kw/hr Per Cl2 Application: Waste Water Treatment

Product Description

Sodium Hypochlorite Generator For Waste water treatment





Brief Introduction



Sodium hypochlorite disinfection presents clear advantages over chlorine gas, notably in safety and convenience. Its liquid form at low concentrations mitigates the risks associated with toxic gas leakage and transportation challenges inherent in chlorine gas usage. Moreover, the simplicity of on-site generation using salt, water, and electricity underscores its appeal as a viable alternative for water treatment facilities seeking efficient and safer disinfection solutions.







Process Flow



The traditional hypochlorite generator operates through the following steps: Initially, tap water undergoes softening to eliminate calcium and magnesium ions. A portion of this softened water is allocated for diluting the sodium hypochlorite generator’s inlet water. Subsequently, the remaining water is directed to a salt dissolving tank where refined salt is dissolved to form 25% saturated brine. This brine is accurately mixed with the diluted water using a metering pump before undergoing electrolysis at the power plant. During electrolysis, chlorine is generated at the anode, while sodium hydroxide and hydrogen are produced at the cathode. Finally, these components react to yield the sodium hypochlorite solution.









Main Features



1) The only raw material: salt or sea water which is safety and convenient for transportation and storage, without any volatility and toxicity.
2) Bipolar electrode connection mode, reduced the heat yield, as well greatly reduced the production of sodium hypochlorite salt consumption and power consumption
3) Salt consumption< 3.5kg / kg Cl2 (National standard 4.5); power consumption < 4kw /kg Cl2 (National standard 4.5)
4) Siemens PLC and touch screen, full automatic control

5) Cathode life >20 years; Machine life >15 years.





Project Reference

Model GBA-20K-NACLO
Dimension of Host Machine 2400*1200*2050mm
Available chlorine 20kg/h
NaClO Output flow 2500L/h
NaClO concentration 8000ppm
Power supply 120kw
Voltage 380V/50hz three phase
Feed brine concentration 2.5~3%
Feed Salt requirement 99.3% food grade salt
Feed water flow 2500L/h
Feed water requirement tap water
Salt Consumption 3.5kg/kg Cl2
AC Power consumption 5kw/kg Cl2
Cell arrangement Horizontal
H2 production amount 0.35m3/kg Cl2
Number of Cell 4pcs
Operation pressure 2~4bar
Feed water temperature 15~25℃
Dosing system Optional
Residual chlorine analyser Optional
Heating/Cooling device Optional
Operation mode Full automatic control, real-time display parameters of the system and running status of each component
Detection Unit Voltage/current detection, Temperature detection, conductivity detection, pressure detection, H8 detection, Component status detection
Cleaning mode Acid washing

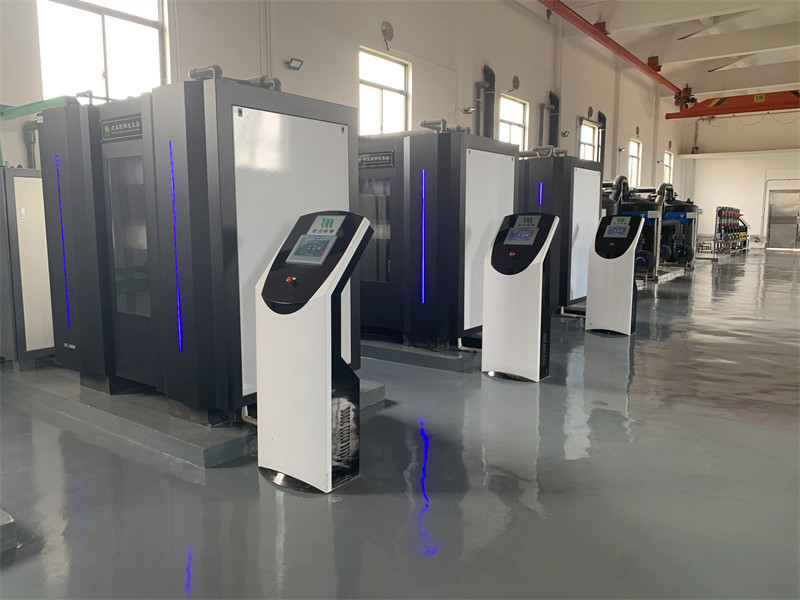

Sodium Hypochlorite Generator For Waste water treatment 0
