300L Engineering Construction Machinery Small Mobile Shelf Load Streel Drum Concrete Mixer

Product Details:
Place of Origin: CHINA
Brand Name: GEEMBLUE
Certification: ISO9001
Model Number: JZC300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Case
Delivery Time: 10 DAYS
Supply Ability: 100 set per month

Detail Information

Outpu Capacity: 300L Production Rate: 6~8m3/h
Stirring Drum Speed: 14r/min Bone Feed Maximum Grain Diameter: 60mm
Mixing Motor: 4kw Lift Motor: 4kw
Pump Motor: 0.55kw Wheel Size: 6.5~16
Pulling Speed: 2km/h Weight: 1000kg
High Light:

300L Engineering Construction Machinery

,

Mobile Shelf Engineering Construction Machinery

Product Description

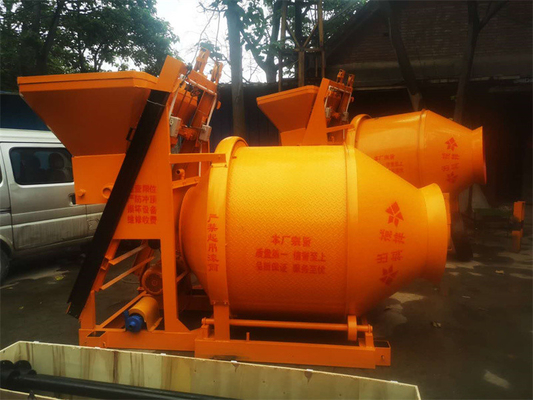

300L Engineering Construction Machinery Small Mobile Shelf Load Streel Drum Concrete Mixer

Small type mobile shelf load Streel drum concrete mixer



Mobile Portable Concrete Mixer can turn over 360 degree at both sides when it works. The drum revolves for mixing and reverses for discharging.
Power source: diesel and electrical engine.


Features:

1. Move the suction point from the back to the front to avoid dust absorption. This is good for extending the service life of the engine.
2. A water pump is added to the mobile portable cement concrete mixer for the water circulation between the engine water tank and radiator to keep the engine water temperature stable.
3. It has the advantages of compact structure, high reliability, uniform mixing, large capacity, simple operation, and easy movement between sites. The reverse roller concrete mixer is widely used in construction sites, road and bridge works and many other construction sites.



Model JZC300
Outpu Capacity 300L
Input Capacity 350L
Production Rate 6~8m3/h
Stirring drum speed 14r/min
Bone feed maximum grain diameter 60mm
Water supply accuracy ≤ 2%
Mixing Motor 4kw
Lift Motor 4kw
Pump Motor 0.55kw
Wheel Size 6.5~16
Weight 1000kg





300L Engineering Construction Machinery Small Mobile Shelf Load Streel Drum Concrete Mixer 0

This machine is forward-rotating mixing, reverse-rotating discharging, which can agitate plastic and semi-dry hard concrete

This machine has the advantages of balanced running, easy operation, good mixing quality and high productivity. It is matched with the feeding weighing device, which can form a medium-sized mixing station, and is used for construction sites, roads, bridges, hydropower and other projects.







300L Engineering Construction Machinery Small Mobile Shelf Load Streel Drum Concrete Mixer 1
