500LPH 316SS Purifier Machine Waste RO Water Treatment System

Product Details:
Place of Origin: CHINA
Brand Name: GEEMBLUE
Certification: CE,ISO9001
Model Number: KYRO-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3000~4500/SET
Packaging Details: Wooden Case
Delivery Time: 20 DAYS
Supply Ability: 30 set per month

Detail Information

Capacity: 500L/h Recovery Rate: 50%
Desalination Rate: 97% Output Power: 1.5kw
Membrane Brand: Dupont Control PLCMode: Manual
Tank Material: Stainless Steel Operation Mode: Button
High Light:

316SS RO Water Treatment System


500LPH RO Water Treatment System

Product Description

500LPH 316 stainless steel RO plant water filter purifier machine waste ro water treatment filters system


RO Technology Description

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.

It is effective to remove asbestos, many taste, colour and odour producing chemicals, particulates, total dissolved ions (calcium,magnesium,sodium,ammonia, boron, chlorides, manganese, sodium, ammonium ions...), turbidity and radium.

RO system is widely used in water supply treatment, purification for tap water, and brackish water, pure water and ultrapure drinking water production, which can be the best choice for power stations, electronic industries,and medical residential areas. It is capable of removing more than 97% of total dissolved solids(TDS),about 99% of organic and bacteria in the feed/source water



Working Process

Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→water softener(optional)→ security filter→ high pressure pump →reverse osmosis system→ Ozone sterilizer (UV sterilizer).

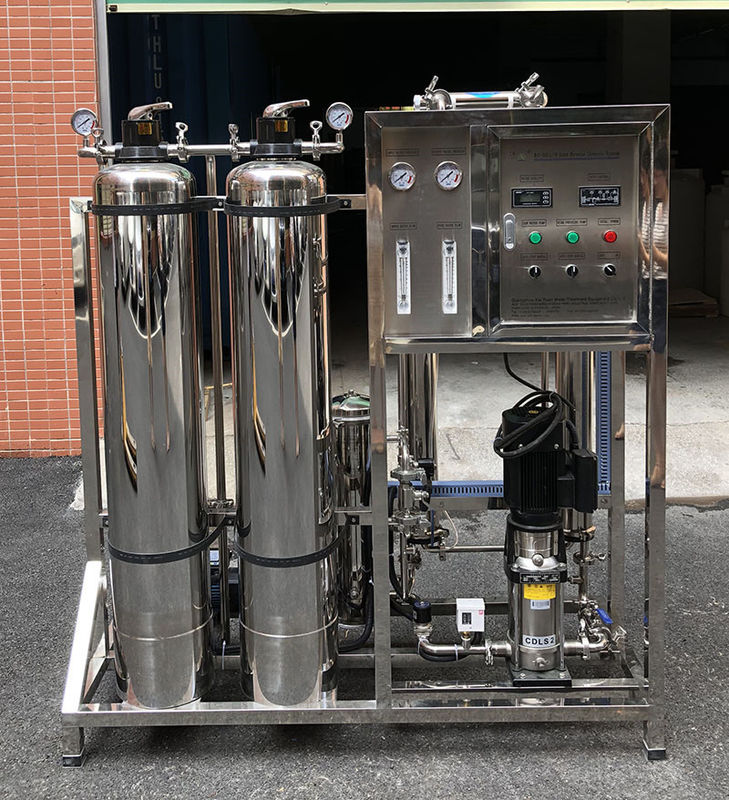

500LPH 316SS Purifier Machine Waste RO Water Treatment System 0



Replacement time of consumable parts

There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 years
We suggest customers buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to be replaced every month.


Application Area
1)Food, beverage, drinking water, bottled drinking water, sachet/pouch packing pure drinking water treatment
2)Chemical industry, pharmaceutical industry pure water treatment
3)Electronic industry, semiconductor industry ultrapure water treatment
4)Electroplating and leather industry waste water treatment

5)Brackish water desalination, sea water desalination, metallurgy and light industry pure water treatment
6)Cosmetic products, car battery, liquid fertilizer production pure water treatment
7)Edible cube ice, tube ice etc.
8)School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler, high pressure boiler water treatment



Ro system technical parameters
Item Name
Raw Water Pump
Provide pressure for filters
Quartz Sand Filter
FRP/ Ss-304/316
Filtrate sediments...
Activated Carbon Filter



FRP/ Ss-304/316
Obsorb odor, smell, color, irons, chlorine... to make clear water
Anti-scalant chemical dosing system/Water Softener
Soften water, protect RO Membranes
Security filter
FRP/ Ss-304/316
Remove colloids larger than 5micro
High pressure pump
Provide pressure for Ro membranes
RO vessels &membranes
Remove dissolved ions,organic materia,bateria...
Solenoid valves, gauges,switch...
To protect the machine underoperation
CIP Washing system(optional)
Ss-304/ FRP/316
Membranes maitenance
Electronic control
PLC Program control , LCD touch screen
Water quality detector,AC contacter,Air switch,indicator light,knob switch,electrical miscellaneous pieces...
Remove some baterial like coliform,pseudomonas aeruginosa...(Sterilization)
