Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine

Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine
Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine

Large Image :  Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine

Product Details:
Place of Origin: CHINA
Brand Name: GEEMBLUE
Certification: CE, ISO9001
Model Number: KYRO-500-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 2800~3500 usd
Packaging Details: wooden case
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 30 set per month
Detailed Product Description
Capacity: 500L/h Recovery Rate: 50%
Desalination Rate: 97% Output Power: 1.5kw
Membrane Brand: Dupont Control Mode: Auto Control
Tank Material: Stanless Steel
High Light:

500L/h Industrial RO Water Treatment System

,

CE Membrane RO Water Treatment System

Stanless steel USA membrane industrial RO plant Reverse osmosis water purifying treatment machine



RO Technology Description

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.

It is effective to remove asbestos, many taste, colour and odour producing chemicals, particulates, total dissolved ions (calcium,magnesium,sodium,ammonia, boron, chlorides, manganese, sodium, ammonium ions...), turbidity and radium.

RO system is widely used in water supply treatment, purification for tap water, and brackish water, pure water and ultrapure drinking water production, which can be the best choice for power stations, electronic industries,and medical residential areas. It is capable of removing more than 97% of total dissolved solids(TDS),about 99% of organic and bacteria in the feed/source water





SYSTEM PERFORMANCE:

★Main part (membrane) of reverse osmosis system is imported from USA

★Auto stop when no water and full water.

★Auto controller, RO membrane auto flush to protect membrane.

★Auto start when pure water tank have no water.

★Low pressure protection switch to protect high pressure pump when there is no raw water.

★High efficient ana low noise high pressure pump:

★Product water conductivity meter to monitor product water quality all the time

★Input water and output water pressure gauge to monitor RO membrane differential pressure to remind it’s time for chemical cleaning

★Inlet water solenoid valve to stop water when machine is stop



Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine 0

FUNCTION OF PRETREATMENT FILTERS:

Pre-treatment filters always include quartz sand filter, activated carbon filter, water softener and security filter. The main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. It can also reduce residual chlorine, pesticide and other harmful pollutions. if the hardness of taw water is high, we need add water softener to protect reverse osmosis membrane from blocking.







Membrane Industrial RO Water Treatment System Reverse Osmosis Purifying Machine 1

APPLICATION

Power industry: boiler water

Electronics industry: semiconductor industry ultrapure water. integrated circuit cleaning water.

Beverage industry: formulation of water, production water, washing water

Pharmaceutical industry: process water, reagent water, washing water, water injection, drug concentration and separation.

Chemical industry: the production of water, waste water treatment, the value of the separation of substances.

Drinking water project. the preparation of pure waler, drinking water purification.

Petroleum and chemical industry: advanced treatment of oilfield injected water and petrochemical wastewater.

Sea water desalination: Sea Island. Coastal water shortage areas, ships, sea water and other production and living water.





Two stage reverse osmosis

The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity ≤2us/cm





TECHNICAL STANDARD OF PURE WATER EQUIPMENT;

1.Reverse osmosis water treatment equipment national standard (GB/T 19249-2003).

2.JB/T 2932 water treatment equipment technical conditions.

3.Output water quality reached: "national drinking water standard", "WHO", "drinking water standard for drinking water quality safety and health function evaluation standard processor – reverse osmosis device", "bottled drinking water health standards"(GB17324-1998)requirements.





Ro system technical parameters
Item Name
Brand
Material
Function
Raw Water Pump
CNP/Grundfos/Danfoss
SUS-304/316
Provide pressure for filters
Quartz Sand Filter
Geemblue
FRP/ Ss-304/316
Filtrate sediments...
Activated Carbon Filter



  Geemblue

FRP/ Ss-304/316
Obsorb odor, smell, color, irons, chlorine... to make clear water
Anti-scalant chemical dosing system/Water Softener
SEKO

Soften water, protect RO Membranes
Security filter
Geemblue
FRP/ Ss-304/316
Remove colloids larger than 5micro
High pressure pump
CNP/Grundfos/Danfoss
SUS-304/316
Provide pressure for Ro membranes
RO vessels &membranes
Domestic&DOW/Toray/Votron/Hydrau.
FRP/Ss-304/316
Remove dissolved ions,organic materia,bateria...
Solenoid valves, gauges,switch...
China
Cooper/Ss-304/316
To protect the machine underoperation
CIP Washing system(optional)
Geemblue
Ss-304/ FRP/316
Membranes maitenance

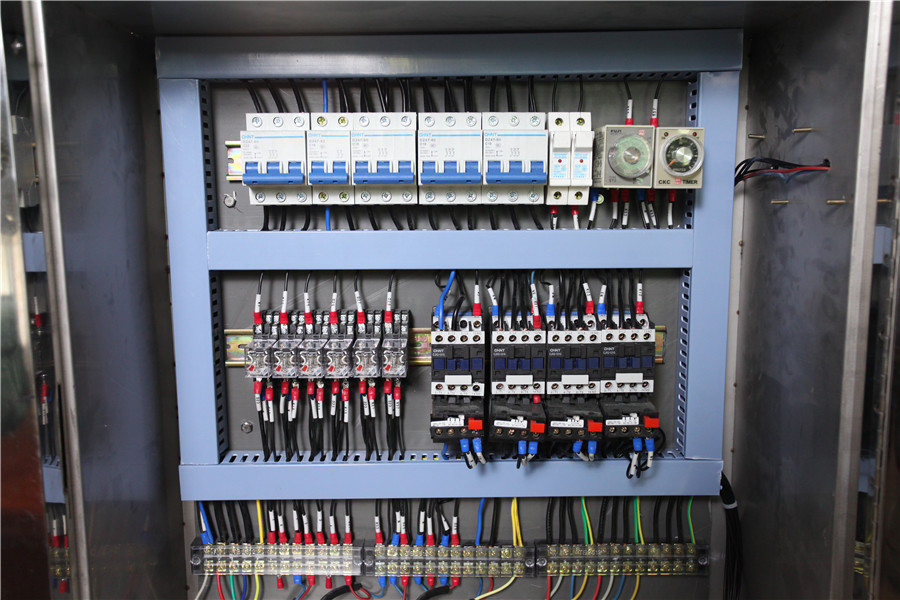

Electronic control
PLC Program control system
Water quality detector,AC contacter,Air switch,indicator light,knob switch,electrical miscellaneous pieces...
UV/Ozone(optional)
USA/Dahuang
Remove some baterial like coliform,pseudomonas aeruginosa...(Sterilization)
