|Desalination Rate:||97%||Output Power:||1.5kw|
|Membrane Barnd:||Dupont||Control Mode:||Auto Control|
50% Recovery RO Water Treatment System,
FRP 500L/H RO Water Treatment System

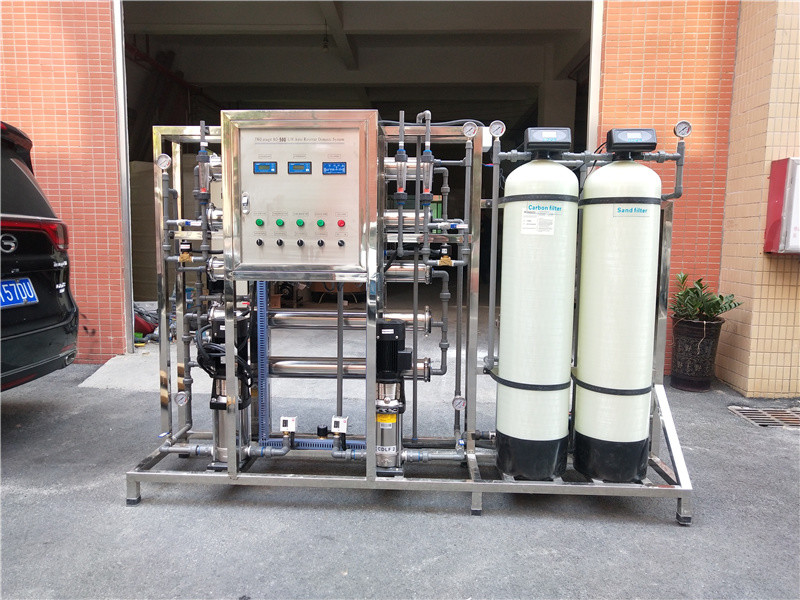

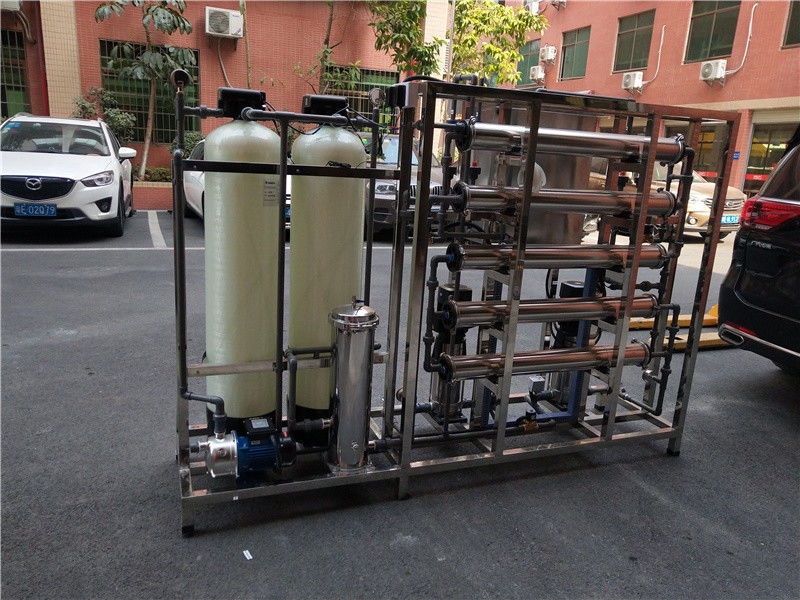

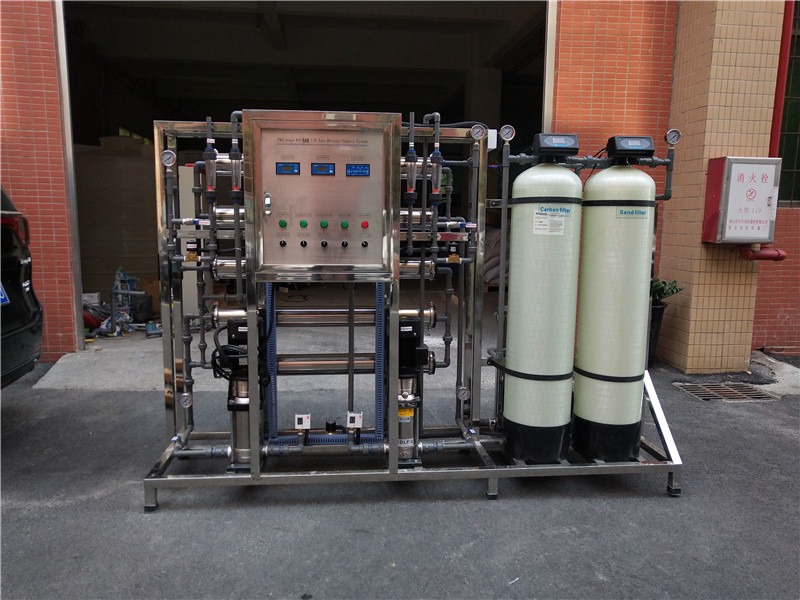

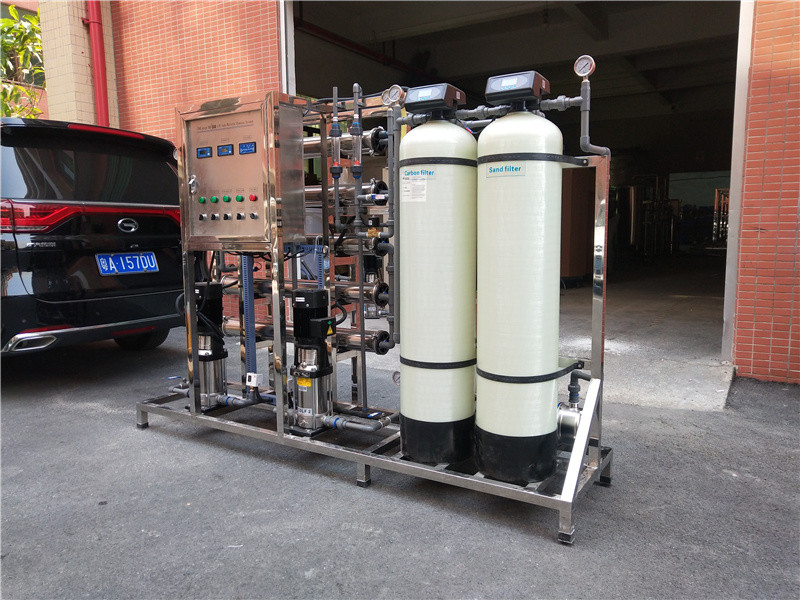

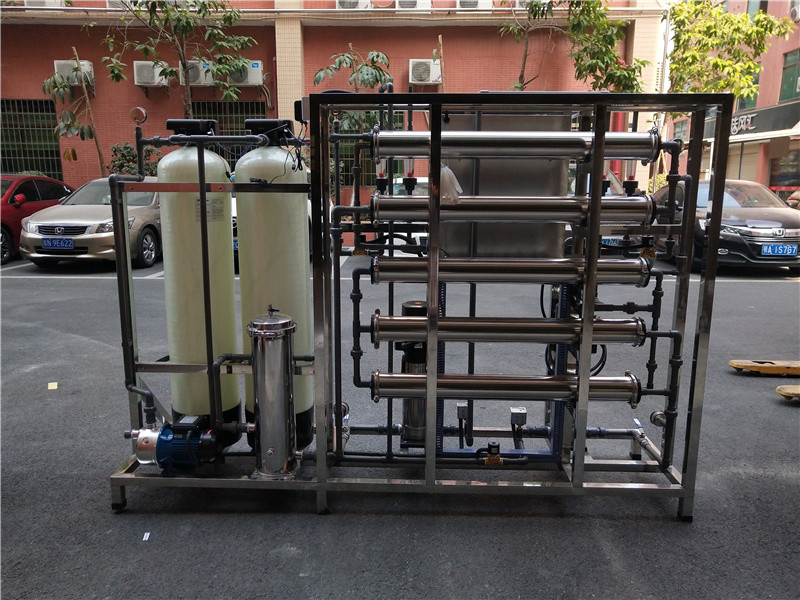

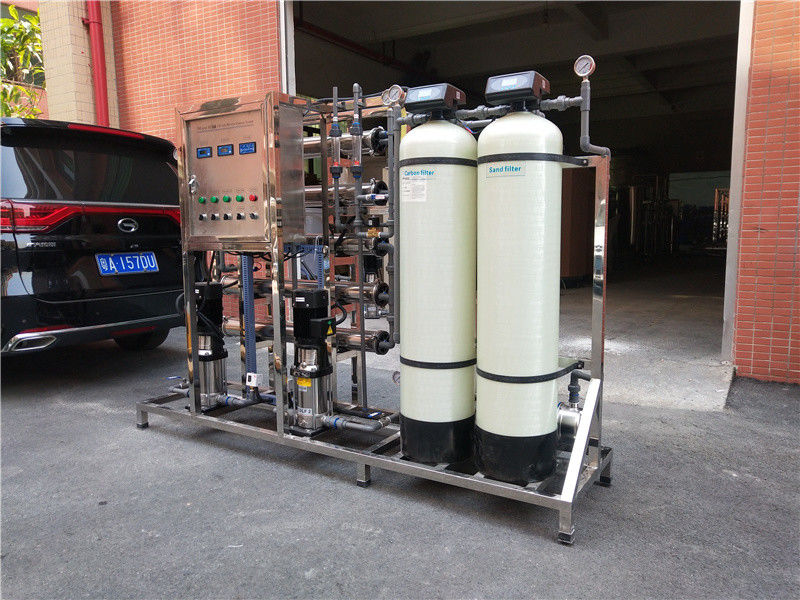

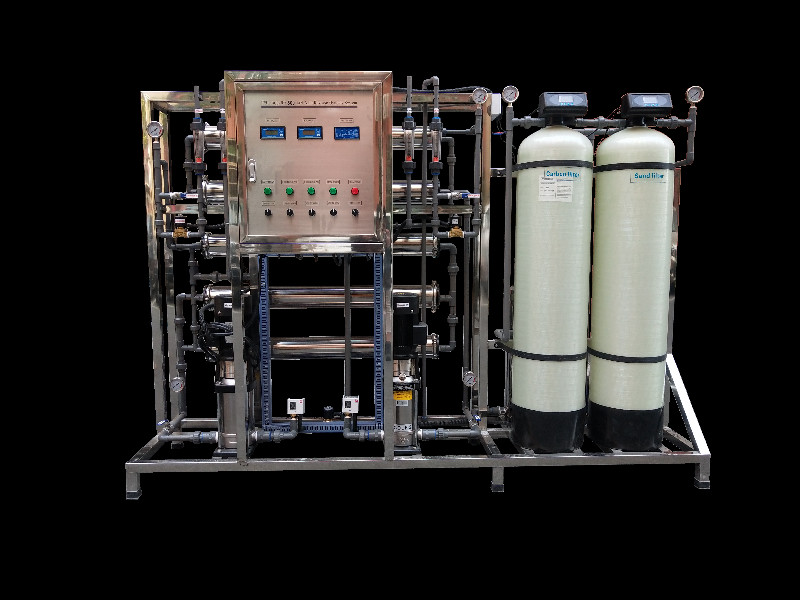

500L / H Water Purification Automatic Cleaning Reverse Osmosis System for Water Treatment
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10μ s/cm. Dense water also won" t polluted environment. Reverse osmosis equipment no need to consider about input water quality too much, And the main features of RO equipment is no need to do any regeneration, it can be kept stable for long time.
★Main part (membrane) of reverse osmosis system is imported from USA
★Auto stop when no water and full water.
★Auto controller, RO membrane auto flush to protect membrane.
★Auto start when pure water tank have no water.
★Low pressure protection switch to protect high pressure pump when there is no raw water.
★High efficient ana low noise high pressure pump:
★Product water conductivity meter to monitor product water quality all the time
★Input water and output water pressure gauge to monitor RO membrane differential pressure to remind it’s time for chemical cleaning
★Inlet water solenoid valve to stop water when machine is stop
FUNCTION OF PRETREATMENT FILTERS:
Pre-treatment filters always include quartz sand filter, activated carbon filter, water softener and security filter. The main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. It can also reduce residual chlorine, pesticide and other harmful pollutions. if the hardness of taw water is high, we need add water softener to protect reverse osmosis membrane from blocking.
Power industry: boiler water
Electronics industry: semiconductor industry ultrapure water. integrated circuit cleaning water.
Beverage industry: formulation of water, production water, washing water
Pharmaceutical industry: process water, reagent water, washing water, water injection, drug concentration and separation.
Chemical industry: the production of water, waste water treatment, the value of the separation of substances.
Drinking water project. the preparation of pure waler, drinking water purification.
Petroleum and chemical industry: advanced treatment of oilfield injected water and petrochemical wastewater.
Sea water desalination: Sea Island. Coastal water shortage areas, ships, sea water and other production and living water.
Two stage reverse osmosis
The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity ≤2us/cm
TECHNICAL STANDARD OF PURE WATER EQUIPMENT;
1.Reverse osmosis water treatment equipment national standard (GB/T 19249-2003).
2.JB/T 2932 water treatment equipment technical conditions.
3.Output water quality reached: "national drinking water standard", "WHO", "drinking water standard for drinking water quality safety and health function evaluation standard processor – reverse osmosis device", "bottled drinking water health standards"(GB17324-1998)requirements.
