|Salt Consumption:||3kg/hr Per Cl2||Power Consumption:||4kw/hr Per Cl2|
|Warranty:||5 Years Electrodes||Type:||Module|
titanium anodes cathodic protection,
mixed metal oxide electrode

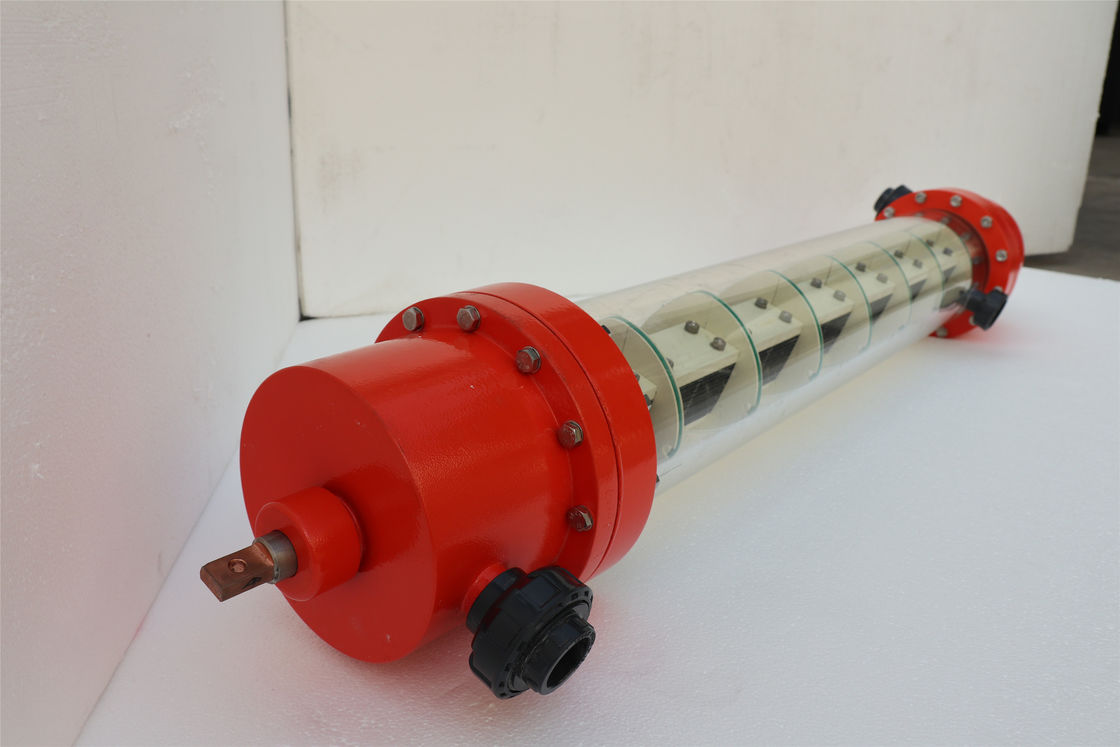

Onsite chlorination system titanium electrode for salt water electrolysis machine
Electrolyser (electrodes or electrolysis cell)
The electrodes we select MAGNETO which is a famous international enterprise for special anode based in the Netherlands. MAGNETO is invention in the world and the first production of platinum plating titanium anode and precious metal oxide coated titanium anodes. In this field, MAGNETO has been focusing on special anodes that are critical to the development and production of applications. With outstanding product quality and leading titanium anode research and development ability, MAGNETO company established a high profile in the field of special titanium anode, has become the industry technology and quality standard.
MMO Anode Manufacturing Process
The typical manufacturing process for MMO anodes starts with surface preparation of the substrate by thoroughly cleaning the commercially pure titanium. This is followed by a chemical etching and in some cases mechanical abrasion of the surface. Once the substrate surface preparation is complete, the coating is applied as a mixture of metal salts and then thermally decomposed at temperatures ranging 400 to 600 °C. This forms an adherent layer of mixed metal oxides. The MMO coatings can be applied in many layers and heat treated after each coat to achieve the desired coating loading to meet the current capacity requirements for the application.
1) Modular design: The electrolytic tube taking use of modular design, can increase or decrease the module according to the different amount of sodium hypochlorite needs which ensure the production process of stereotypes mature and perfect as well as product quality.
2) Bipolar structure: Composite electrode connection way, the entire structure of the connection is minimal, reducing the heat on the connector, greatly reducing the production of sodium hypochlorite salt and power consumption, has a positive effect on reducing the by-product.
3) Transparent design of electrolytic tube: which can real time observe the electrolysis process and the electrodes surface scaling condition so as to confirm the pickling period
4) Gradient push flow energy saving technology: The saltwater push flow in the electrolyzer, and the concentration of brine is gradient, which can obviously improve the electrolysis efficiency, reduce the temperature rise of the electrolyte, as well the electricity consumption by 18% and salt consumption by 14%.
5) All electrodes are made of pure titanium (TA1); The surface of anode are coated with ruthenium and iridium oxide particles in 25 times;
|Material||Pure titanium, UPVC|
|Working life||≥5 years|
|Features||• Large adaptability to different brine qualities
• Lower energy consumption
• High strength sodium hypochlorite
• Can be washed in order to restore the original permeability
• Harmless and environmental friendly, does not contain any restricted material
|Applications||Sodium Hypochlorite Generator, swimming pool disinfection, etc.|
|Payment terms||T/T, L/C, Western Union, PayPal or as your requirements|
